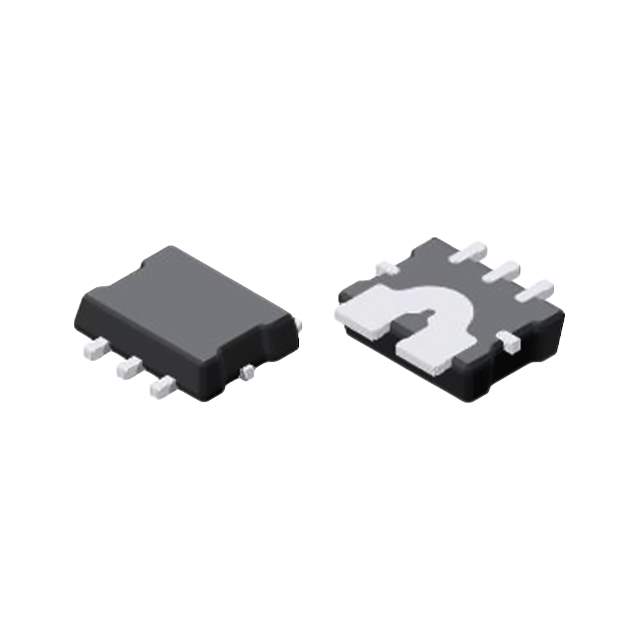

Same model may have multiple batches, images only for reference.

ACS780LLRTR-050U-T

Name: ACS780LLRTR-050U-T
Brand: Allegro MicroSystems, LLC
SKU: 998748
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ACS780LLRTR-050U-T
Manufacturer	Allegro MicroSystems, LLC
Catalog	Current Transducers
Description	SENSOR CUR HALL 50A 7POWERSMD / Current Sensor 50A 1 Channel Hall Effect, Differential Unidirectional 7-PowerSMD Module
Datasheet	ACS780LLRTR-050U-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Current Sensors
Mfr	Allegro MicroSystems
Series	Automotive, AEC-Q100
Package	Tape & Reel
For Measuring	DC
Sensor Type	Hall Effect, Differential
Current - Sensing	50A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	60mV/A
Frequency	DC ~ 120kHz
Linearity	±1%
Accuracy	±1.5%
Voltage - Supply	4.5V ~ 5.5V
Response Time	3.6µs
Current - Supply (Max)	15mA
Temperature Range - Operating	-40°C ~ 150°C
Polarization	Unidirectional
Mounting	SMD (SMT)
Package / Case	7-PowerSMD Module
Supplier Device Package	7-PSOF
Base Product Number	ACS780
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	ALLALLACS780LLRTR-050U-T,2156-ACS780LLRTR-050U-T,620-1818-6,620-1818-2,620-1818-1
Standard Package	3,000
Win Source Part Number	998748-ACS780LLRTR-050U-T
Ultra Librarian 3D Model	Ultra Librarian ACS780LLRTR-050U-T CAD Model

Alternative Products

Description

The ACS780LLRTR-050U-T is a unidirectional current sensor that is used for measuring DC current.

Sensor Type: hall effect, differential
Sensitivity: 60mV/A
Sensing Current: up to 50A
Output: ratiometric voltage
Linearity: ±1%
Accuracy: ±1.5%
Response time: 3.6µs
Temperature Range: -40°C to 150°C
Package: 7-PowerSMD module
Voltage Supply: 4.5V to 5.5V
Compliance: AEC-Q100 standards
Ideal for: automotive applications
Packaging: tape and reel
Standard Package: 3,000
