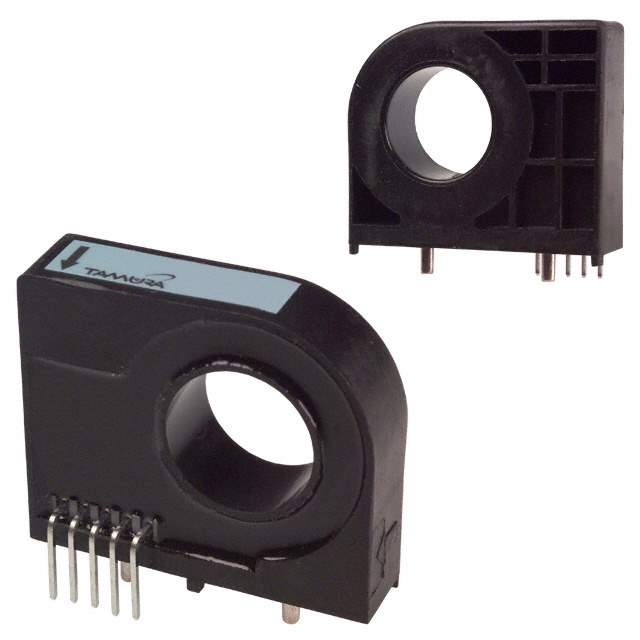

L08P100D15 Real Image
Same model may have multiple batches, images only for reference.

L08P100D15

Part No L08P100D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC
Datasheet
L08P100D15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Tamura
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC to 100kHz
Linearity ±1%
Supply Voltage - Operating ±15V
Response Time 10μs
Current - Supply (Max) 12mA
Temperature Range - Operating -10°C to 80°C
Polarization Bidirectional
Mounting Through Hole
Dimension Module
Win Source Part Number 1051165-L08P100D15
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L08P100D15 CAD Model

Description

The 1051165-L08P100D15 is a hall effect open loop sensor manufactured by Tamura, designed for AC/DC measurement.

  • Output: ratiometric and voltage output
  • Polarization: bidirectional
  • Maximum Supply Current: 12mA
  • Current Sense: up to 100A
  • Linearity: ±1%
  • Operating Temperature Range: -10°C to 80°C
  • Ideal for: use in sensors and transducers applications.
