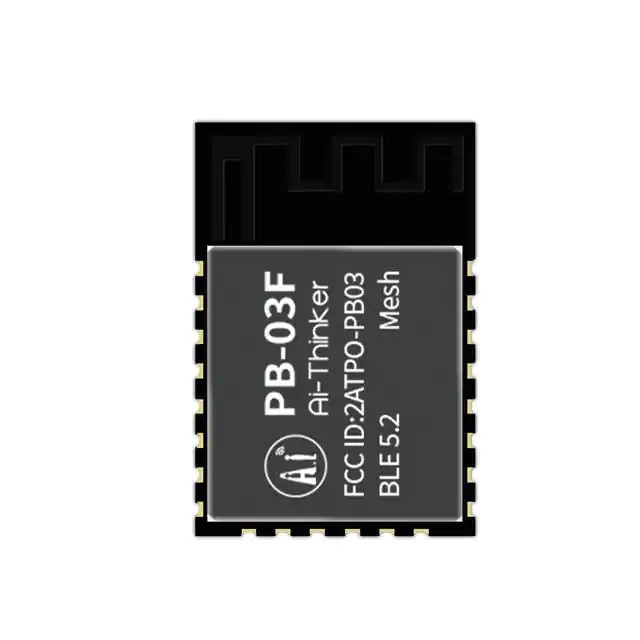

PB-03F Ai-Thinker
Same model may have multiple batches, images only for reference.

PB-03F

Part No PB-03F
Manufacturer Ai-Thinker
Catalog RF Transceiver Modules
Description BLUETOOTH MODULE, BLE5.2 MODULE
Datasheet
PB-03F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth
Protocol Bluetooth v5.2
Modulation -
Frequency 2.4GHz
Data Rate 2Mbps
Power - Output 8dBm
Sensitivity -102dBm
Serial Interfaces ADC, GPIO, I²C, I²S, PDM, PWM, SPI
Antenna Type PCB Trace
Utilized IC / Part PHY6252
Memory Size 256kB Flash, 96kB ROM, 64kB SRAM
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 9.4mA
Current - Transmitting 8mA ~ 11.5mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 22-SMD Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.62.0090
Win Source Part Number 1370873-PB-03F
Ultra Librarian 3D Model Ultra Librarian PB-03F CAD Model

Description

The 1370873-PB-03F is a compact and versatile RF Transceiver Module designed for Bluetooth communication applications.

  • Frequency: 2.4GHz
  • Bluetooth Protocol: Bluetooth v5.2
  • Voltage Supply: 2.7V to 3.6V
  • Memory Size: 256kB Flash, 96kB ROM, and 64kB SRAM
  • Power Output: 8dBm
  • Sensitivity: -102dBm
  • Package: 22-SMD Module
  • Serial Interfaces: ADC, GPIO, I²C, I²S, PDM, PWM, and SPI
  • Manufacturer: Ai-Thinker
