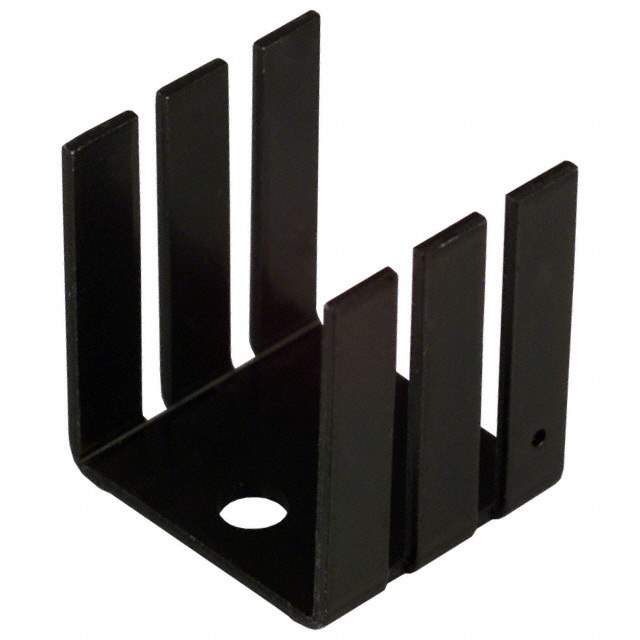

504102B00000G Real Image
Same model may have multiple batches, images only for reference.

504102B00000G

Part No 504102B00000G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 PWR CLR .700" / Heat Sink TO-220 Aluminum 2.0W @ 40°C Board Level
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Aavid, Thermal Division of Boyd Corporation
Package Bag
Type Board Level
Package Cooled TO-220
Attachment Method Bolt On
Shape Rectangular, Fins
Length 0.701" (17.80mm)
Width 0.779" (19.80mm)
Fin Height 0.850" (21.60mm)
Power Dissipation @ Temperature Rise 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow 6.00°C/W @ 300 LFM
Thermal Resistance @ Natural 15.60°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 504102
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names 5041,HS104-1,001234,5041B,504102B00000
Standard Package 1,000
Win Source Part Number 1177759-504102B00000G
Ultra Librarian 3D Model Ultra Librarian 504102B00000G CAD Model

Description

The Aavid Thermal Division of Boyd Corporation heat sink has a Win Source part number of 1177759-504102B00000G.

  • Type: Board Level
  • Shape: Rectangular, Fins
  • Package: Bag
  • Length: 0.701" (17.80mm)
  • Width: 0.779" (19.80mm)
  • Fin Height: 0.850" (21.60mm)
  • Material: Aluminum
  • Material Finish: Black Anodized
  • Package Cooling: TO-220
  • Attachment Method: Bolt-On
  • Power Dissipation @ Temperature Rise: 2.0W @ 40°C
  • Thermal Resistance @ Forced Air Flow: 6.00°C/W @ 300 LFM
  • Thermal Resistance @ Natural: 15.60°C/W @ Natural
  • Standard Package: 1,000
  • ECCN: EAR99.30.5100
