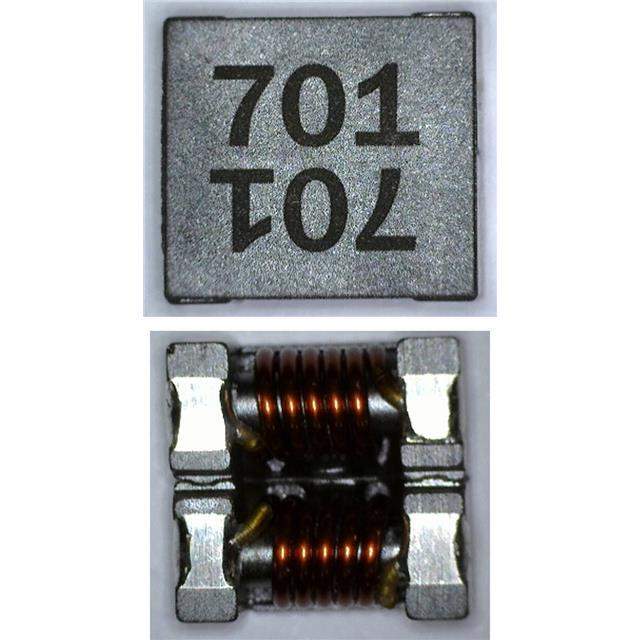

ACMS-Q4523E-201-T Real Image
Same model may have multiple batches, images only for reference.

ACMS-Q4523E-201-T

Part No ACMS-Q4523E-201-T
Manufacturer Abracon LLC
Catalog Common Mode Chokes
Description CMC 200UH 0.11A 4500M / 200 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 110mA DCR 4.5Ohm
Datasheet
ACMS-Q4523E-201-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Abracon LLC
Series ACMS-Q4523E
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 200 µH @ 100 kHz
Current Rating (Max) 110mA
DC Resistance (DCR) (Max) 4.5Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.098" (2.50mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 535-ACMS-Q4523E-201-TTR,535-ACMS-Q4523E-201-TCT,2022-04-05,535-ACMS-Q4523E-201-TDKR
Standard Package 2,000
Win Source Part Number 1038699-ACMS-Q4523E-201-T
Ultra Librarian 3D Model Ultra Librarian ACMS-Q4523E-201-T CAD Model

Description

The ACMS-Q4523E-201-T is a common mode choke filter manufactured by Abracon LLC.

  • Voltage Rating: 50V DC
  • Maximum Current Rating: 110mA
  • DC Resistance: 4.5Ohm
  • Rated: AEC-Q200
  • Height: 0.098" (2.50mm)
  • Package Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Filter Type: Signal line, two lines
  • Inductance: 200 µH @ 100 kHz
  • Temperature Range: -40°C ~ 125°C
  • Packaging: Tape and Reel
  • Standard Package: 2,000 units
  • Alternative Parts: Available, cross-reference is recommended
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8548.00.0000
