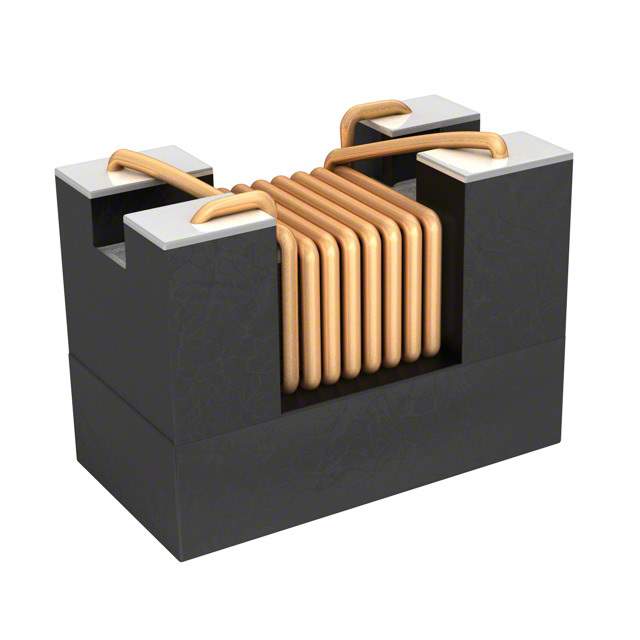

ACM-0603-181-T

Part No ACM-0603-181-T
Manufacturer Abracon LLC
Catalog Common Mode Chokes
Description CMC 500MA 2LN 180 OHM SMD / 2 Line Common Mode Choke Surface Mount 180 Ohms 500mA DCR 210mOhm
Datasheet
ACM-0603-181-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Abracon LLC
Series ACM-0603
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 180 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 210mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height (Max) 0.047" (1.20mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 535-12403-2,535-12403-1,535-12403-6
Standard Package 2,000
Win Source Part Number 1052454-ACM-0603-181-T
Ultra Librarian 3D Model Ultra Librarian ACM-0603-181-T CAD Model

Description

The ACM-0603-181-T is a common mode choke filter designed for signal line filtering applications.

  • Maximum DC Resistance: 210mOhm
  • Current Rating: 500mA
  • Filter Type: Signal Line
  • Height: 0.047" (1.20mm)
  • Package Size: 0.063" L x 0.033" W (1.60mm x 0.85mm)
  • Mounting: SMD (SMT)
  • Impedance: 180 Ohms @ 100 MHz
  • Voltage: 50V DC
  • Series: ACM-0603
  • Package: Tape and Reel
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Abracon LLC
  • ECCN: EAR99
