Part No	145802060002829+
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Rectangular Connectors

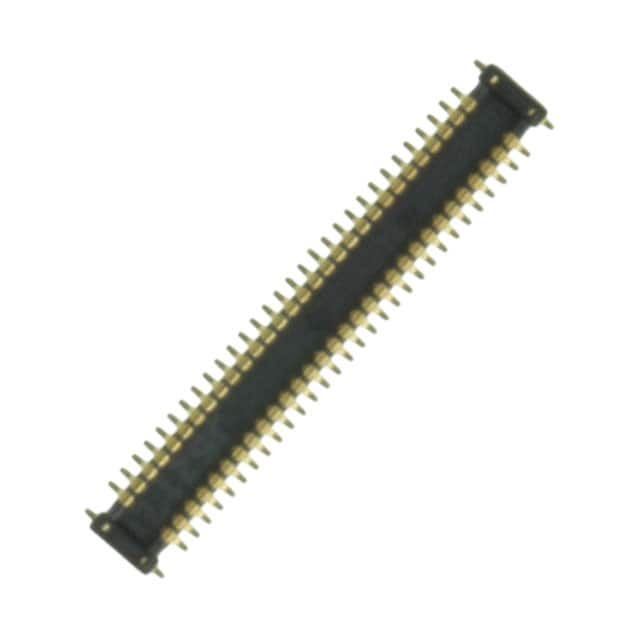

Description	CONN PLUG 60POS SMD GOLD
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	AVX Corp/Kyocera Corp
Series	5802, Kyocera
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	60
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	0.8mm
Height Above Board	0.026" (0.65mm)
Base Product Number	145802
Standard Package	2,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853981-145802060002829+
Ultra Librarian 3D Model	Ultra Librarian 145802060002829+ CAD Model

Alternative Products

Description

The 5802 series edge type mezzanine connectors from Kyocera offer reliable board-to-board connections in electronic applications.

Positions: 60
Pitch: 0.016" (0.40mm)
Connector Type: Plug connector with outer shroud contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Features: Board Guide and Solder Retention
Mated Stacking Height: 0.8mm
Height Above Board: 0.026" (0.65mm)
Manufacturer: AVX Corp/Kyocera Corp
Status: Obsolete
