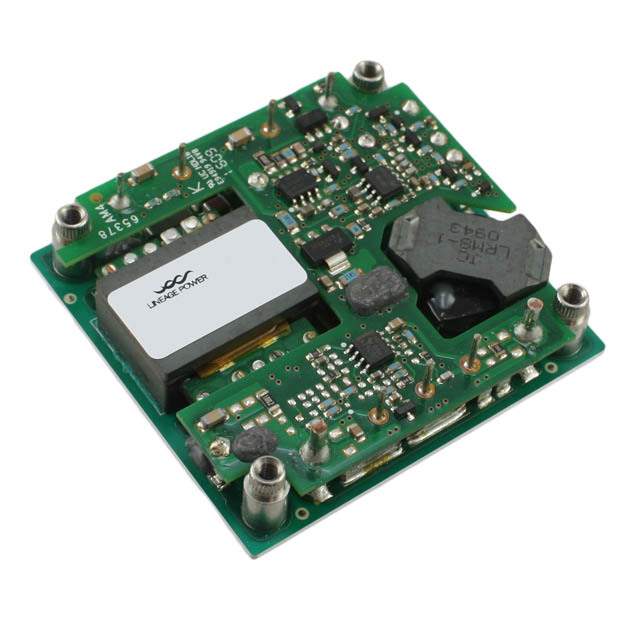

JAHW075A1 Real Image
Same model may have multiple batches, images only for reference.

JAHW075A1

Part No JAHW075A1
Manufacturer ABB Embedded Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 75W / Isolated Module DC DC Converter 1 Output 5V 15A 36V - 75V Input
Datasheet
JAHW075A1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr ABB Power Electronics Inc.
Series JAHW (66W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 15A
Power (Watts) 75 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 90.4%
Mounting Type Through Hole
Package / Case 9-DIP Module
Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Control Features Enable, Active Low
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 40
Win Source Part Number 1066260-JAHW075A1
Ultra Librarian 3D Model Ultra Librarian JAHW075A1 CAD Model

Description

The 1066260-JAHW075A1 is an obsolete isolated module DC-DC converter from ABB Power Electronics Inc. This IC has a power output of 75 W and is part of the JAHW (66W) series. It has a remote on/off, OCP, OTP, and OVP features. This IC has a package type of 9-DIP module and is mounted through hole. It has a voltage isolation of 1.5 kV and has a single output with a maximum output current of 15A. Its input voltage range is from 36V to 75V and its output voltage is fixed at 5V. Its efficiency is @ 90.4%. This IC is not RoHS compliant.
