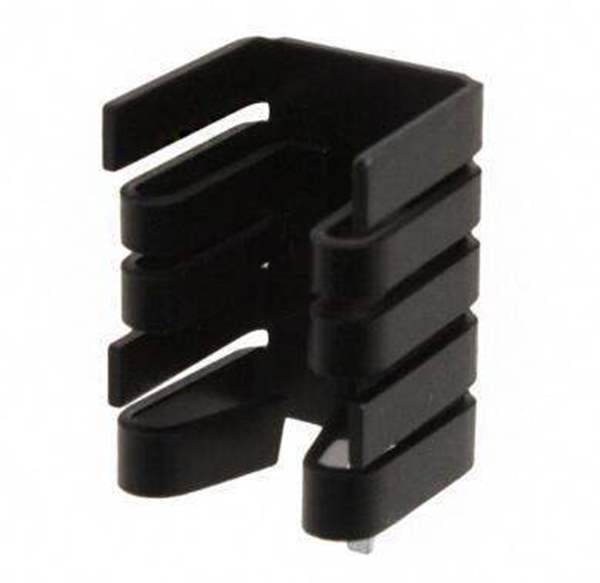

576802B04000G

Part No 576802B04000G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEAT SINK VERT PLUG-IN TO-220
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Aavid, Thermal Division of Boyd Corporation
Category Fans, Thermal Management Thermal Heat Sinks
Product Status Active
Type Board Level, Vertical
Package Cooled TO-220, TO-262
Attachment Method Clip and PC Pin
Shape Rectangular, Fins
Length 0.750" (19.05mm)
Width 0.500" (12.70mm)
Fin Height 0.500" (12.70mm)
Thermal Resistance @ Forced Air Flow 7.00°C/W @ 400 LFM
Win Source Part Number WS1209623-576802B04000G
Ultra Librarian 3D Model Ultra Librarian 576802B04000G CAD Model

Description

Heat Sink TO-220, TO-262 Aluminum 1.0W @ 30°C Board Level, Vertical
