Same model may have multiple batches, images only for reference.

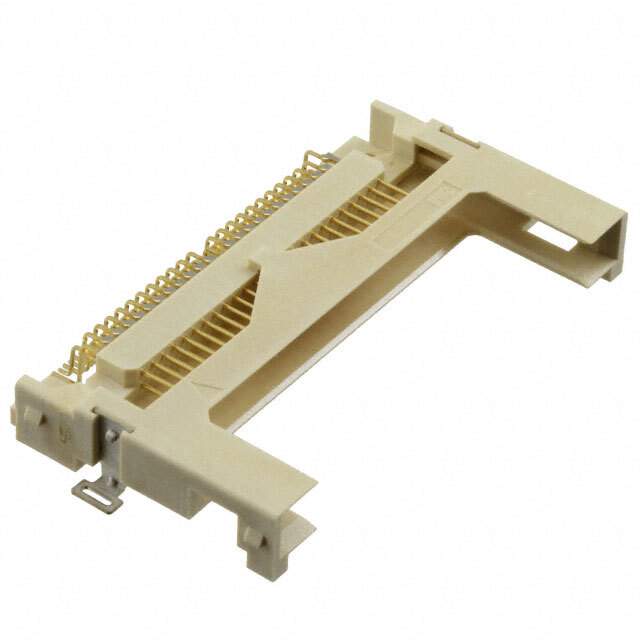

N7E50-7516PK-20 Real Image
Same model may have multiple batches, images only for reference.

N7E50-7516PK-20

Part No N7E50-7516PK-20
Manufacturer 3M
Catalog Memory Connectors - PC Card Sockets
Description CONN COMPACT FLASH CARD R/A SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features Position Card Connector
Manufacturer 3M
Series 7E50
Package Bulk
Family Name N7E50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 05111165507, 3M155880, 4547452459407, 5 45 48623 74509 6, 5 48623 74509, 54745245940, 7000007692, JE-1503-3935-4, JE-1504-3013-8, JE150339354, JE150430138, N7E50-7516PK-20-ND, N7E507516PK20
Quantity per package 100
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 847696-N7E50-7516PK-20
Ultra Librarian 3D Model Ultra Librarian N7E50-7516PK-20 CAD Model

Description

The 847696-N7E50-7516PK-20 is a position card connector manufactured by 3M.

  • Family: N7E50
  • Series: 7E50
  • Category: Connectors
  • Popularity: Medium
  • Quantity Per Package: 100
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 11 Weeks
  • REACH Status: REACH Unaffected
