Same model may have multiple batches, images only for reference.

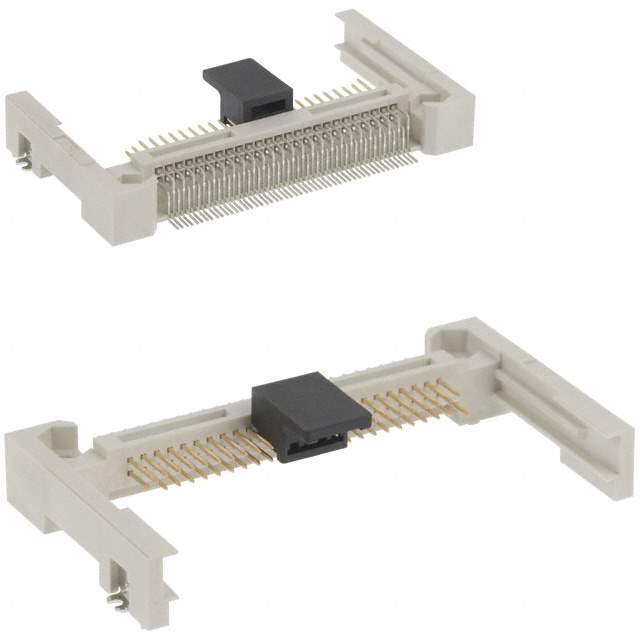

N7E50-Q516RB-50-WF Real Image
Same model may have multiple batches, images only for reference.

N7E50-Q516RB-50-WF

Part No N7E50-Q516RB-50-WF
Manufacturer 3M
Catalog Memory Connectors - PC Card Sockets
Description CONN COMPACT FLASH CARD R/A SMD / Conn Compact Flash Card HDR 50 POS 0.635mm Solder RA SMD 0.5A T/R
Datasheet
N7E50-Q516RB-50-WF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 7E50
Packaging Reel package
Card Type CompactFlash - Type I, II
Number of Positions 50
Connector Type Connector
Insertion, Removal Method Push In, Pull Out
Mounting Surface Mount, Right Angle
Features Board Guide, Card Guide
Height Above Board 0.341" (8.65mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 790488-N7E50-Q516RB-50-WF
Popularity Medium
Supply and Demand Status Limited
Family Name 7E50
Introduction Date January 12, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian N7E50-Q516RB-50-WF CAD Model

Description

The 3M 7E50 series connector is a board guide and card guide connector type.

  • Mounting: Surface mount, Right angle
  • Package: Reel
  • Positions: 50
  • Height Above Board: 0.341 inches (8.65mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Card Type: CompactFlash - Type I, II
  • Insertion/Removal: Push in, Pull out
  • Mounting Feature: Normal, standard - top
  • Series: 7E50
  • Alternatives: 53856-5010, 538565071, N7E50-Q516TC-50, N7E50-Q516TC-50-WF
  • Estimated EOL Date: 2027
