Products specifications

Manufacturer JAE Electronics
Packaging Reel
Card Type Micro SIM
Number of Positions 8 (6 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Style Surface Mount, Right Angle
Features Switch
Height Above Board 0.049"
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness Flash
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806795-SF56S006V4BR2000
Ultra Librarian 3D Model Ultra Librarian SF56S006V4BR2000 CAD Model

Description

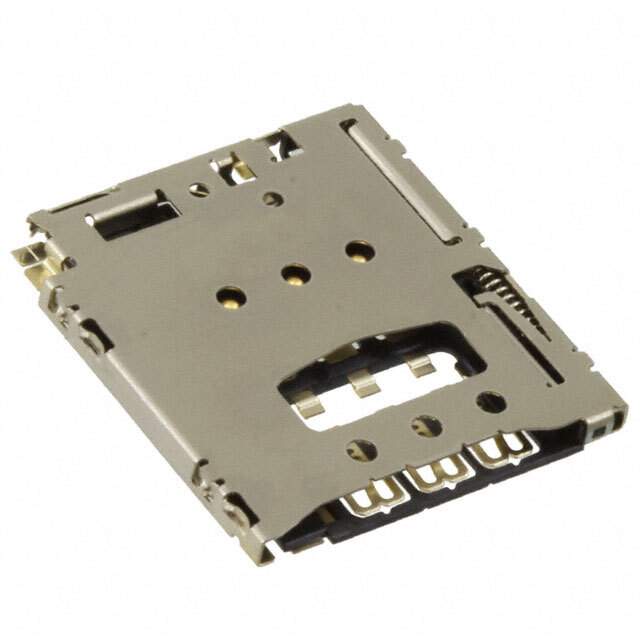

The JAE Electronics 806795-SF56S006V4BR2000 is a surface mount, right angle connector from JAE Electronics.

  • Connector Type: Micro SIM card
  • Positions: 8 (6+2)
  • Switch: Yes
  • Contact Finish: Gold Flash
  • Height Above Board: 0.049 inches
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1
