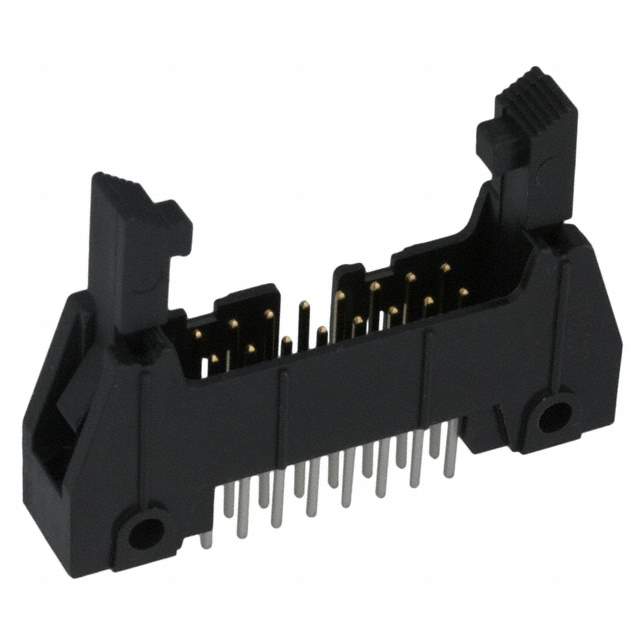

N3408-6302RB Real Image
Same model may have multiple batches, images only for reference.

N3408-6302RB

Part No N3408-6302RB
Manufacturer 3M
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 3000
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.652" (16.56mm)
Insulation Height 0.680" (17.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3408
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 5111162756,00051111732540,80000911349,05111173254,51111627563,7000057648,80400031649,N3408-6302RB-ND,N3408-6602RB-ND,N34086302RB,XP700003641,MHS16N,5111173254,N3408-6602RB,51111732540,00051111627563,05111162756
Standard Package 350
Win Source Part Number 1082362-N3408-6302RB
Ultra Librarian 3D Model Ultra Librarian N3408-6302RB CAD Model

Description

The 3M 3000 series header is a male pin connector designed for use in rectangular connectors.

  • Positions: 16
  • Features: Keying slot, mounting flange, and a latch lock/eject hooks, long fastening type
  • Contact Material: Copper alloy
  • Contact Finish - Mating: Gold
  • Contact Finish - Post: Tin
  • Current Rating: 1.75A
  • Temperature Range: -55°C to 105°C
  • Insulation Material: Polycyclohexylenedimethylene terephthalate (PCT), polyester, glass filled
  • Insulation Color: Black
  • Connection: Board to board or cable style
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Contact Finish Thickness - Post: 200.0µin (5.08µm)
  • Shrouding: Shrouded-4 wall
  • Row Spacing: 0.100 inches (2.54mm)
