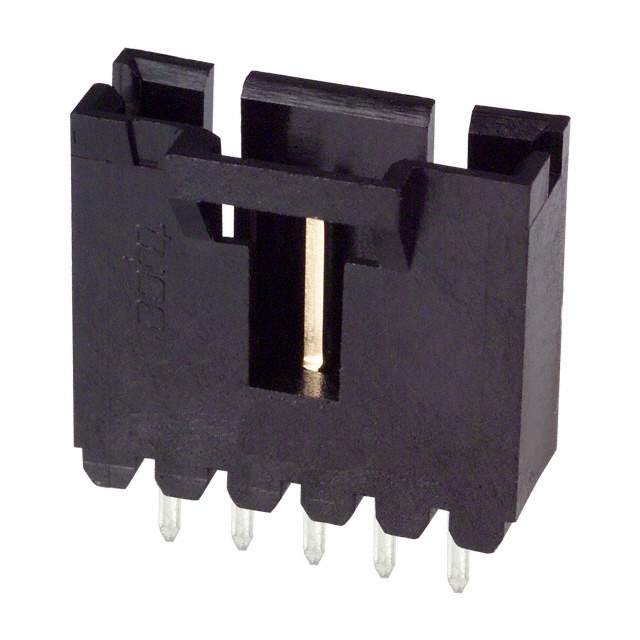

Same model may have multiple batches, images only for reference.

5-104363-4

Name: 5-104363-4
Brand: TE Connectivity
SKU: 22067
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5-104363-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT .100 5POS 15AU
Datasheet	5-104363-4 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.550" (13.97mm)
Insulation Height	0.535" (13.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Insulation Material	Thermoplastic
Features	Keying Slot
Temperature Range - Operating	-65°C to 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3A
Contact Finish Thickness - Post	100μin (2.54μm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number	056948-5-104363-4
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Medical, Automotive, Communications & Networking, Computers & Computer Peripherals, Sensing & Instrumentation, Test & Measurement
Ultra Librarian 3D Model	Ultra Librarian 5-104363-4 CAD Model

Alternative Products

Description

Product Overview

The 5-104363-4 is an innovative electronic component designed to meet the needs of modern technology solutions. It offers enhanced performance features tailored to sophisticated electronic systems.

Applications and Projects

Telecommunication systems
Medical devices
Robotics
Advanced computing

Features and Benefits

Advanced Technology: Incorporates the latest technological advancements.
Energy Efficient: Helps reduce power consumption.
Versatile Design: Can be used across various platforms.

Additional Details

Perfect for scenarios where high performance and flexibility are required, the 5-104363-4 helps streamline complex systems and architectures.
