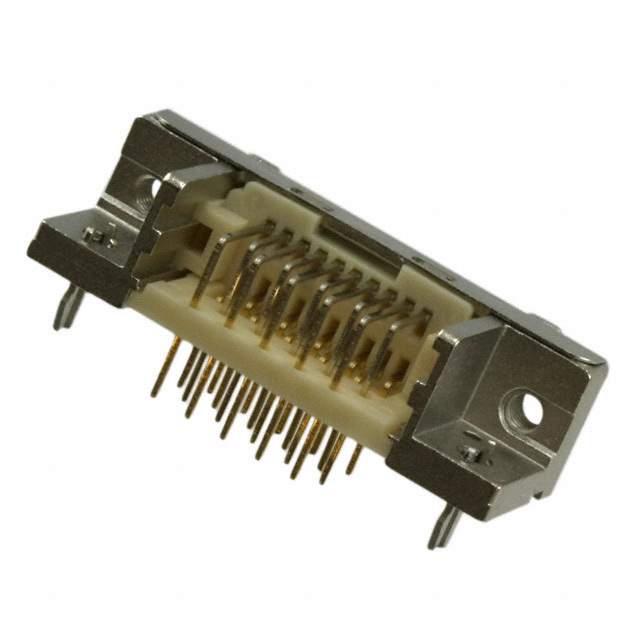

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Shaped Connectors - Centronics
Mfr 3M
Series 102, Mini D Ribbon (MDR)
Package Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 20
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (M2.6)
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number N10220
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 3M155872,JE150333316,JE-1503-3331-6,54745240766,4547452407668,N1022052B2PC,-N10220-52B2PC,N10220-52B2PC-ND,7000090318
Standard Package 100
Win Source Part Number 1001514-N10220-52B2PC
Ultra Librarian 3D Model Ultra Librarian N10220-52B2PC CAD Model

Description

The N10220-52B2PC is a connector component manufactured by 3M.

  • Positions: 20
  • Rows: 2
  • Features: Board Lock and Shielded
  • Connector Type: Receptacle
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • RoHS Compliance: Compliant
  • REACH: Unaffected
  • Supply and Demand Status: Shortage
