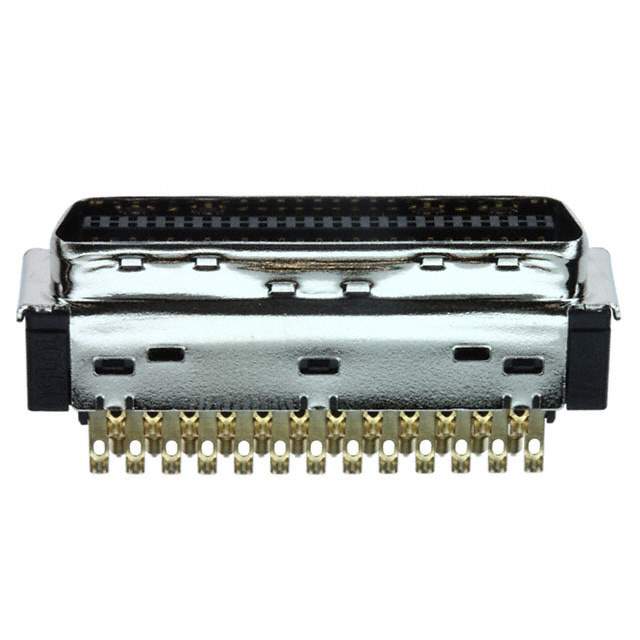

10150-3000PE Real Image
Same model may have multiple batches, images only for reference.

10150-3000PE

Part No 10150-3000PE
Manufacturer 3M
Catalog D - Sub Connectors
Description CONN PLUG 50POS STR SLDR CUP  /  50 Position Plug Connector Free Hanging (In-Line) Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Shaped Connectors - Centronics
Mfr 3M
Series 101, Mini D Ribbon (MDR)
Package Tray
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 50
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Features Shielded
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Base Product Number 10150
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names 3M1772,5 48623 74496,7000007690,JE150481610,JE150332847,JE-1504-8161-0,54745239795,101503000PE,4547452397952,5 45 48623 74496 9,JE-1503-3284-7,JE-1504-3000-5,7100207171,JE150430005
Standard Package 100
Win Source Part Number 1166285-10150-3000PE
Ultra Librarian 3D Model Ultra Librarian 10150-3000PE CAD Model

Description

The 3M 1166285-10150-3000PE is a D-shaped connector from 3M with 50 positions.

  • Type: Shielded Plug Connector
  • Rows: Two
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Contact Finish Thickness: 20.0µin (0.51µm)
  • Package: Tray
  • Standard Package: 100
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
