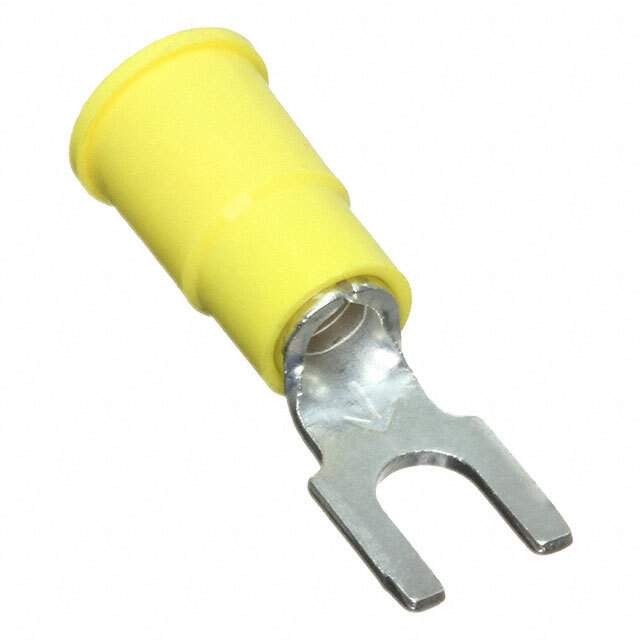

Same model may have multiple batches, images only for reference.

BS-33-8-P

Name: BS-33-8-P
Brand: 3M
SKU: 1175093
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BS-33-8-P
Manufacturer	3M
Catalog	Terminals
Description	CONN SPADE TERM 10-12AWG #8 YEL / Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Spade Connectors
Mfr	3M
Package	Bulk
Terminal Type	Standard
Stud/Tab Size	8 Stud
Width - Outer Edges	0.320" (8.13mm)
Length - Overall	1.030" (26.16mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp
Wire Gauge	10-12 AWG
Insulation	Insulated
Features	Butted Seam
Color	Yellow
Contact Finish	Tin
Contact Material	Copper, ETP
Insulation Diameter	0.250" (6.35mm)
Material - Insulation	Vinyl
Length - Ring Center to Termination	0.290" (7.37mm)
Length - Termination	0.550" (13.97mm)
Base Product Number	BS-33
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	3M157215,80601385281,00054007288138,05400728813,BS-33-8-P-ND,7100163709
Standard Package	1,000
Win Source Part Number	1175093-BS-33-8-P
Ultra Librarian 3D Model	Ultra Librarian BS-33-8-P CAD Model

Description

The 3M BS-33 series terminal spade connector is a high-quality electronic component designed for use in free-hanging (in-line) applications.

Manufacturer: 3M
Series: BS-33
Type: Terminal Spade Connector
Application: Free-Hanging (In-Line)
Feature: Butted Seam
Insulated: Yes
Wire Gauge: 10-12 AWG
Contact Material: Copper, ETP
Insulation Material: Vinyl
Insulation Diameter: 0.250 inches (6.35mm)
Width: 0.320 inches (8.13mm)
Overall Length: 1.030 inches (26.16mm)
Package Quantity: 1,000
ECCN: EAR99
REACH: Unaffected
