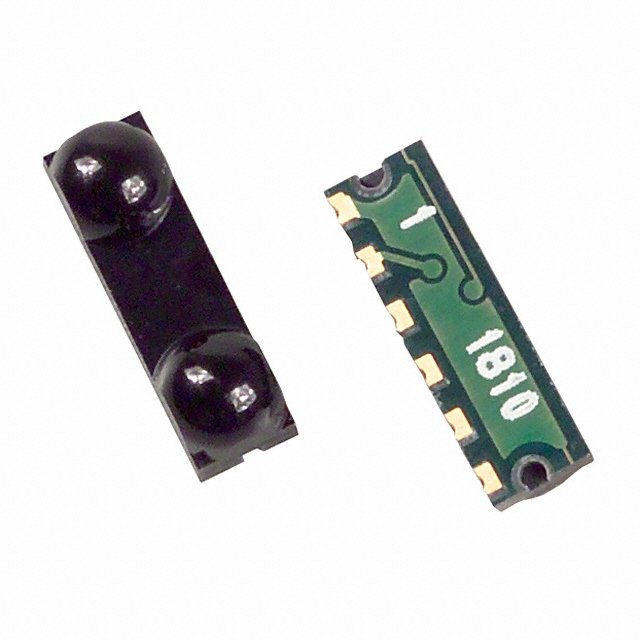

ZHX1010MV115THTR Zilog
Same model may have multiple batches, images only for reference.

ZHX1010MV115THTR

Part No ZHX1010MV115THTR
Manufacturer Zilog
Catalog IrDA Transceiver Modules
Description IRDA MODULE 115.2KBPS 6SMD
Datasheet
ZHX1010MV115THTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Zilog
Packaging Reel - TR
Status Obsolete(EOL)
Data Rate 115.2kbs (SIR)
Supply Voltage 2.4 V to 5.5 V
Idle Current, Typ @ 25°C 90μA
Link Range, Low Power 1m
Orientation Side View
Temperature Range - Operating -30°C to 85°C
Size 9.7mm x 3.7mm x 4.0mm
Shutdown Yes
Win Source Part Number 102613-ZHX1010MV115THTR
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ZHX1010MV115THTR CAD Model

Description

The Zilog ZHX1010MV115THTR is an obsolete (EOL) sensor/transducer.

  • Supply and Demand Status: Balanced
  • Suitable for: Use in various applications that require a data rate of 115.2kbs (SIR), a link range of 1m, and a supply voltage of 2.4V to 5.5V
  • Idle Current: 90μA
  • Size: 9.7mm x 3.7mm x 4.0mm
  • Benefit: Reliable and efficient solution for sensing/transducing needs
