Same model may have multiple batches, images only for reference.

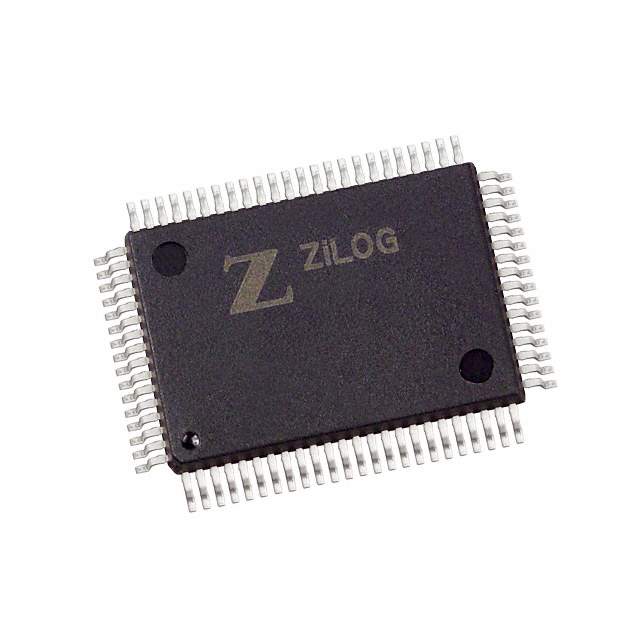

Z8S18020FEG Real Image
Same model may have multiple batches, images only for reference.

Z8S18020FEG

Part No Z8S18020FEG
Manufacturer Zilog
Catalog Embedded - Microprocessors
Description IC MPU Z180 20MHZ 80QFP / 8-bit MPU which provides the benefits of reduced system costs
Datasheet
Z8S18020FEG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Zilog
Series Z180
Packaging Tray
Core Processor Z8S180
Number of Cores/Bus Width 1 Core, 8-Bit
Speed 20MHz
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5.0V
Operating Temperature Range -40°C ~ 100°C (TA)
Package 80-BQFP
Manufacturer Package 80-QFP
Additional Interfaces ASCI, CSIO, UART
Win Source Part Number 800310-Z8S18020FEG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 66
Family Name Z8S180
Introduction Date February 25, 1997
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian Z8S18020FEG CAD Model

Description

The Zilog electronic component is a Z180 series integrated circuit that is used in power management applications.

  • Packaging: tray
  • Operating Temperature: -40°C to 100°C
  • Supply and Demand: Limited
  • Popularity: Medium
  • Core Count: 1
  • Bus Width: 8-bit
  • Speed: 20MHz
  • EOL Date: 2025 (estimated)
  • Compliance: halogen-free
  • Manufacturer Homepage: www.zilog.com
