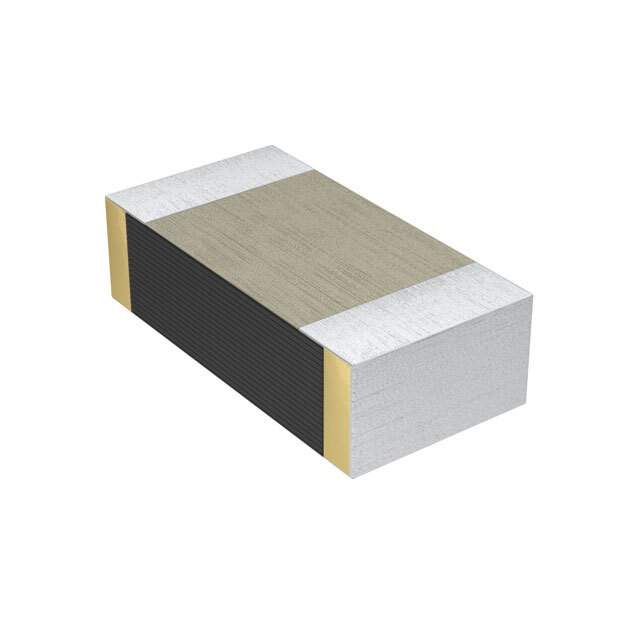

The ECHU1C123GX5 is a film capacitor manufactured by Panasonic. It is part of the ECQU series, known for its reliability and performance in general purpose applications. These capacitors are designed to provide stable capacitance and are commonly used in a variety of electronic circuits.

Applications

• Power Supplies: Used for filtering and smoothing in power supply circuits.
• Consumer Electronics: Commonly found in devices like televisions, audio equipment, and other appliances for signal coupling and decoupling.
• Industrial Equipment: Utilized in motor drives, inverters, and other industrial applications for reliable performance.
• Lighting Ballasts: Used in electronic ballasts for fluorescent and LED lighting systems.
• Noise Suppression: Helps reduce electromagnetic interference (EMI) in electronic devices.
• Signal Coupling and Decoupling: Employed to isolate signals and reduce noise in both analog and digital circuits.
• Snubber Circuits: Protects switching devices from voltage transients.
• Filtering Circuits: Used in both analog and digital filter designs for frequency selection and noise reduction.

Features

• Metallized Film Construction: Offers excellent self-healing properties and enhanced reliability.
• Polyester Film Dielectric: Provides stable capacitance with a low dissipation factor.
• Compact Size: Designed for high-density mounting on circuit boards.
• High Moisture Resistance: Suitable for use in humid environments.
• Flame Retardant Coating: Enhances safety by preventing fire hazards.
• RoHS Compliant: Complies with environmental regulations regarding hazardous substances.
• Excellent Pulse Handling Capability: Suitable for applications involving high pulse currents.
• Long Life: Designed for extended operational life in demanding applications.

Benefits

• Reliable Performance: Ensures stable operation and long life in diverse electronic circuits.
• Compact Design: Allows for efficient use of board space, particularly in space-constrained environments.
• High Safety: Flame retardant coating offers added protection against potential fire hazards.
• Environmentally Friendly: RoHS compliance ensures that the product meets environmental standards.
• Versatile Use: Suitable for a wide array of general-purpose applications.
• Noise Reduction: Effective in suppressing noise and improving overall signal integrity.

Additional Details

The ECHU1C123GX5 has a capacitance of 0.012uF (microfarads) or 12nF (nanofarads). The voltage rating typically falls within the 50V to 100V range, which needs verification from the official datasheet. The '1C' in the part number indicates the voltage rating, while the 'GX5' specifies the lead style and packaging of the component. For accurate and detailed specifications, including capacitance tolerance, operating temperature range, and physical dimensions, it is important to consult the official Panasonic datasheet. These capacitors are also designed for automated placement during manufacturing.
