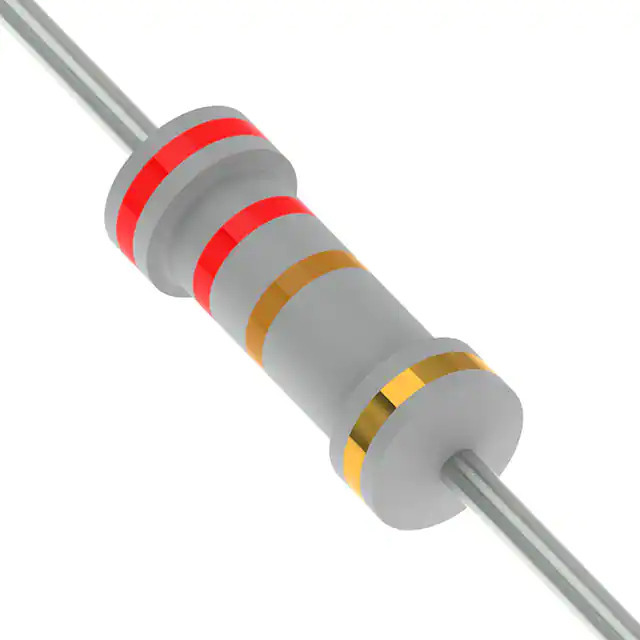

RSF3WSJT-73-22K Yageo
Same model may have multiple batches, images only for reference.

RSF3WSJT-73-22K

Part No RSF3WSJT-73-22K
Manufacturer Yageo
Catalog Through Hole Resistors
Description RES 22K OHM 5% 3W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr YAGEO
Series RSF
Package Tape & Box (TB)
Product Status Active
Resistance 22 kOhms
Tolerance ±5%
Power (Watts) 3W
Composition Metal Oxide Film
Features Flame Proof, Safety
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 235°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.197" Dia x 0.610" L (5.00mm x 15.50mm)
Height - Seated (Max) -
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374771-RSF3WSJT-73-22K
Ultra Librarian 3D Model Ultra Librarian RSF3WSJT-73-22K CAD Model

Description

The RSF3WSJT-73-22K is a flame-proof, safety resistor from YAGEO.

  • Series: RSF
  • Package / Case: Axial
  • Resistance: 22 kOhms
  • Tolerance: ±5%
  • Technology: Metal Oxide Film
  • Power (Watts): 3W
  • Product Status: Active
  • Packaging: Tape & Box (TB)
  • Temperature Coefficient: ±300ppm/°C
  • Operating Temperature: -55°C to 235°C
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Number of Terminations: 2
