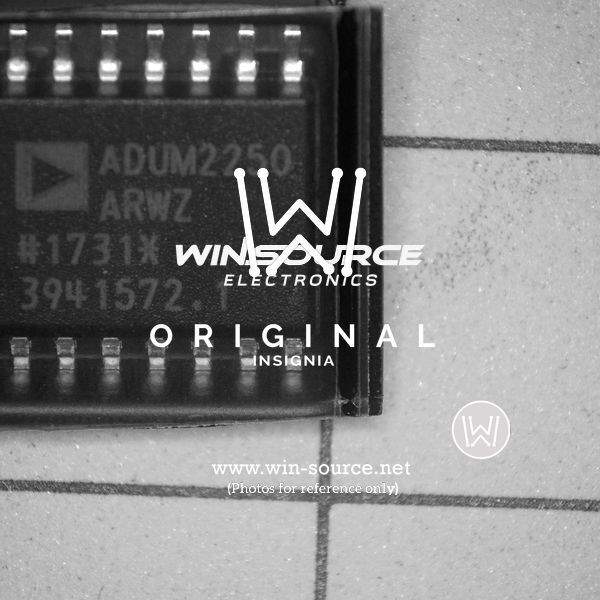

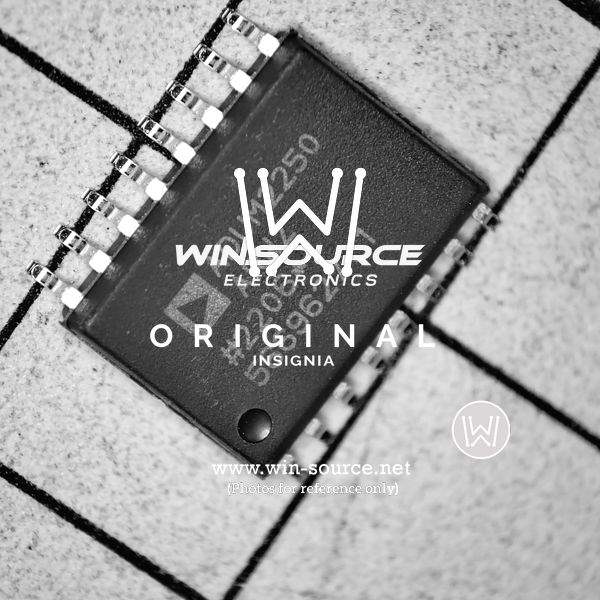

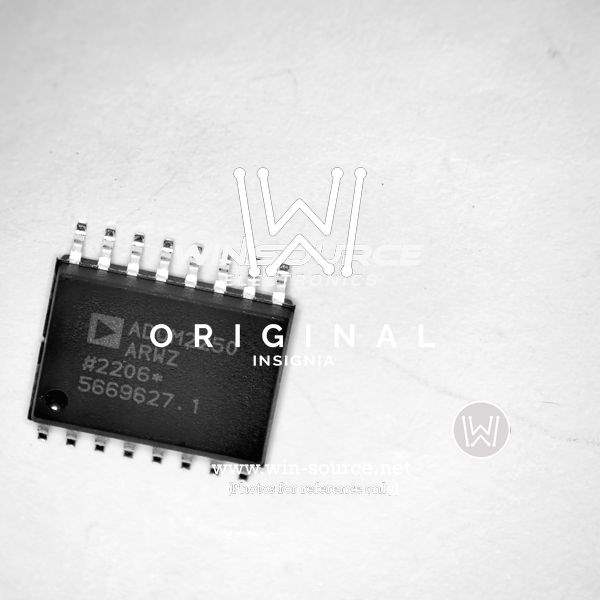

The ADUM2250ARWZ is a cutting-edge digital isolator manufactured by Analog Devices Inc., designed to provide robust isolation for a variety of electronic applications. This component is part of the iCoupler® family, which utilizes Analog Devices' proprietary technology to combine high-speed CMOS and monolithic air core transformer technology, offering the benefits of isolation with the ease of signal transfer through an integrated magnetic coupling.

Key Features:

• Isolation Voltage: The ADUM2250ARWZ boasts an impressive isolation voltage of 2500 Vrms, providing reliable protection against high voltage transients and enhancing system safety.
• Channel Configuration: This device features a bidirectional I2C compatible channel configuration, making it an ideal choice for isolating I2C interfaces.
• Data Rate: With support for data rates up to 1 Mbps, it is well-suited for applications that require fast data transfer while maintaining isolation.
• Operating Temperature: It operates over a wide temperature range from -40°C to +105°C, ensuring stable performance across diverse environmental conditions.
• Package: The ADUM2250ARWZ is available in a compact 16-lead SOIC wide body package, which minimizes board space and is compatible with standard surface-mount technology.
• Safety Approvals: It is recognized by UL and CSA, and has VDE and CQC certifications, confirming its compliance with stringent safety standards.

Applications:

The ADUM2250ARWZ is well-suited for a wide range of applications, including but not limited to:

• Industrial automation and control systems
• Sensor isolation
• Medical equipment with stringent safety requirements
• PCB level power isolation
• Isolated I2C, SMBus, or PMBus interfaces

Conclusion:

Analog Devices Inc.'s ADUM2250ARWZ is an integral component for systems that demand high isolation, robustness, and reliability. Its advanced technology ensures that it can meet the rigorous demands of modern electronic applications, making it a go-to choice for engineers and designers across various industries.
