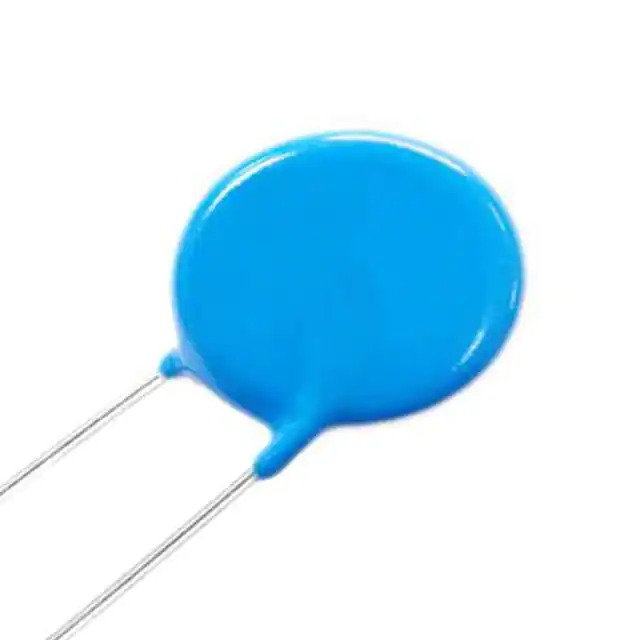

821KD20

Part No 821KD20
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 820 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr YAGEO
Series 20D
Package Bag
Product Status Active
Maximum AC Volts 510 V
Maximum DC Volts 670 V
Varistor Voltage (Min) 738 V
Varistor Voltage (Typ) 820 V
Varistor Voltage (Max) 902 V
Current - Surge 10 kA
Energy 460J
Number of Circuits 1
Capacitance @ Frequency 500 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Features -
Mounting Type Through Hole
Package / Case Disc 20mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361065-821KD20
Ultra Librarian 3D Model Ultra Librarian 821KD20 CAD Model

Description

The YAGEO 1361065-821KD20 is a transient voltage suppressor designed for circuit protection applications.

  • Series: 20D
  • Package: Disc 20mm
  • Capacitance: 500 pF @ 1 kHz
  • Maximum AC Volts: 510V
  • Maximum DC Volts: 670V
  • Varistor Voltage: 738V to 902V
  • Surge Current Rating: 10kA
  • Energy Rating: 460J
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 105°C
