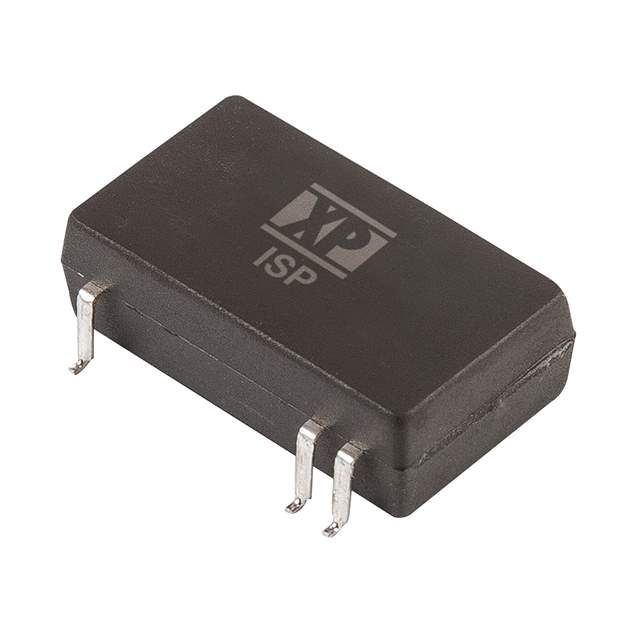

ISP1212A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series ISP (2W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Current - Output (Max) 167mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting SMD (SMT)
Package / Case 16-SMD Module, 6 Leads
Dimension 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-1571-5
Standard Package 21
Win Source Part Number 1194283-ISP1212A
Ultra Librarian 3D Model Ultra Librarian ISP1212A CAD Model

Description

The ISP1212A is an isolated module power supply designed for use in commercial ITE applications.

  • Series: ISP (2W)
  • Power Output: 2 W
  • Voltage Isolation: 1.5 kV
  • Output: Single
  • Current Output: 167mA
  • Voltage Input Range: 9V to 18V
  • Package: Tube
  • Mounting Technology: SMD (SMT)
  • Efficiency: 78%
  • Temperature Range: -40°C ~ 85°C
  • Standard Package: 21
  • Popularity: High
  • Status: Obsolete
