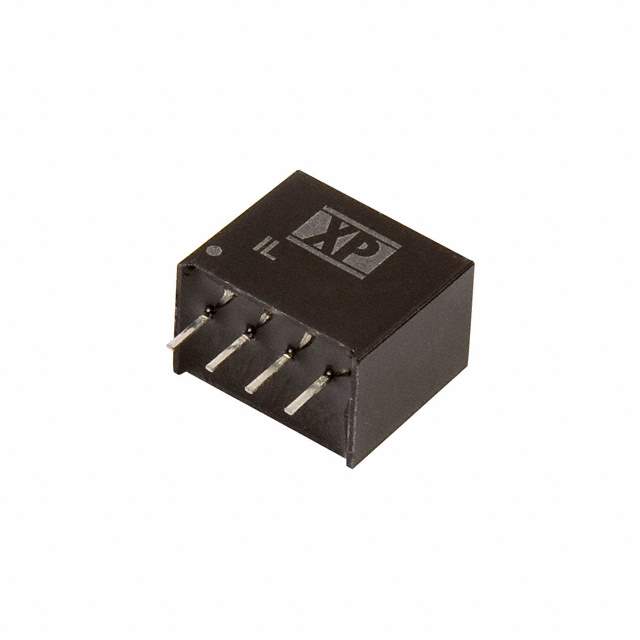

IL4803S Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series IL (2W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 43.2V
Voltage - Input (Max) 52.8V
Voltage - Output 1 3.3V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 72%
Mounting Type Through Hole
Package / Case 4-SIP Module
Dimension 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Base Product Number IL4803
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-2440-5
Standard Package 40
Win Source Part Number 1122261-IL4803S
Ultra Librarian 3D Model Ultra Librarian IL4803S CAD Model

Description

The electronic component with Id 1013856 is a power supply module from XP Power.

  • Series: IL
  • Power Output: 2W
  • Win Source Part Number: 1122261-IL4803S
  • Module Type: Isolated
  • Voltage Isolation: 1kV
  • Output: Single
  • Maximum Output Current: 400mA
  • Operating Temperature: -40°C to 85°C
  • Package: 4-SIP Module
  • Dimensions: 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
