Same model may have multiple batches, images only for reference.

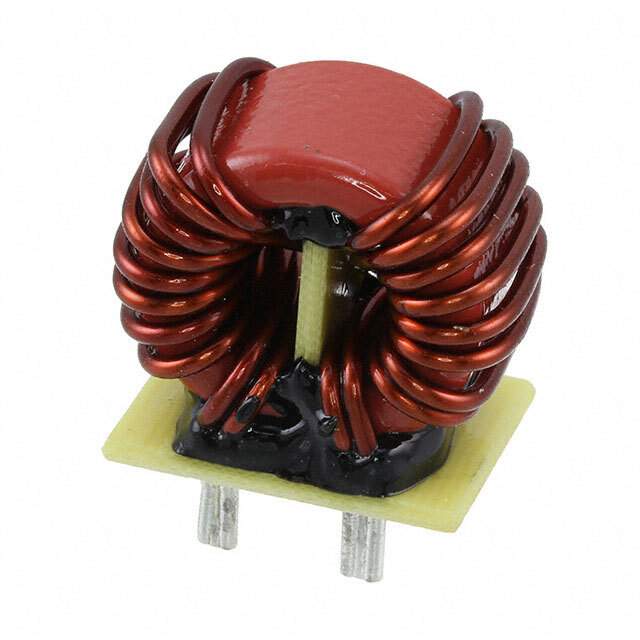

S14100039 Real Image
Same model may have multiple batches, images only for reference.

S14100039

Part No S14100039
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Datasheet
S14100039 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Würth Elektronik
Series WE-CMB
Package Tray
Number of Lines 2
Inductance @ Frequency 285 µH @ 10 kHz
Current Rating (Max) 25A
DC Resistance (DCR) (Max) 1.6mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Dimension 1.142" Dia x 0.787" W (29.00mm x 20.00mm)
Height (Max) 1.142" (29.00mm)
Package / Case Vertical, 4 PC Pin
Other Names 732-7140
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276450-S14100039
Ultra Librarian 3D Model Ultra Librarian S14100039 CAD Model

Description

The S14100039 is a common mode choke manufactured by Würth Elektronik.

  • Manufacturer: Würth Elektronik
  • Component Family: WE-CMB
  • Filter Type: Common Mode Choke
  • Current Rating (Max): 25A
  • Inductance @ Frequency: 285 µH @ 10 kHz
  • DC Resistance (DCR) (Max): 1.6mOhm
  • Application: Filter
  • Package: Vertical, 4 PC Pin
  • Mounting: Through Hole
