Same model may have multiple batches, images only for reference.

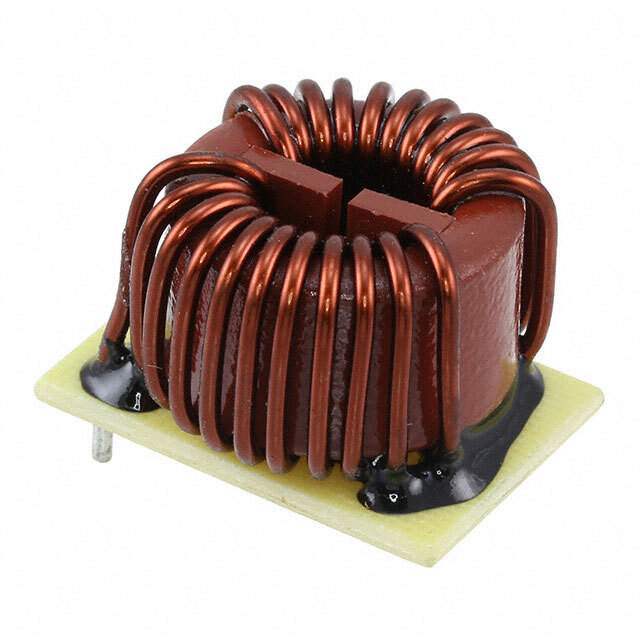

S14100037 Real Image
Same model may have multiple batches, images only for reference.

S14100037

Part No S14100037
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 15A 2LN TH / 1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 15A DCR 7.5mOhm
Datasheet
S14100037 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Würth Elektronik
Series WE-CMBH
Package Tray
Number of Lines 2
Inductance @ Frequency 1 mH @ 10 kHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 7.5mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Dimension 1.220" L x 1.102" W (31.00mm x 28.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Horizontal, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 732-7138
Standard Package 20
Win Source Part Number 1013430-S14100037
Ultra Librarian 3D Model Ultra Librarian S14100037 CAD Model

Description

The WE-CMBH is a common mode choke from Würth Elektronik that is designed for use in a wide range of applications.

  • Manufacturer: Würth Elektronik
  • Product Name: WE-CMBH
  • Type: Common Mode Choke
  • Voltage Rating: 250V
  • Maximum Current Rating: 15A
  • Package: Tray
  • Standard Package: 20
  • Height: 0.827" (21.00mm)
  • Number of Lines: 2
  • Inductance: 1mH @ 10kHz
  • DC Resistance (DCR): 7.5mOhm
  • Mounting Type: Through-Hole
  • Package/Case: Horizontal, 4 PC Pin
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
