Same model may have multiple batches, images only for reference.

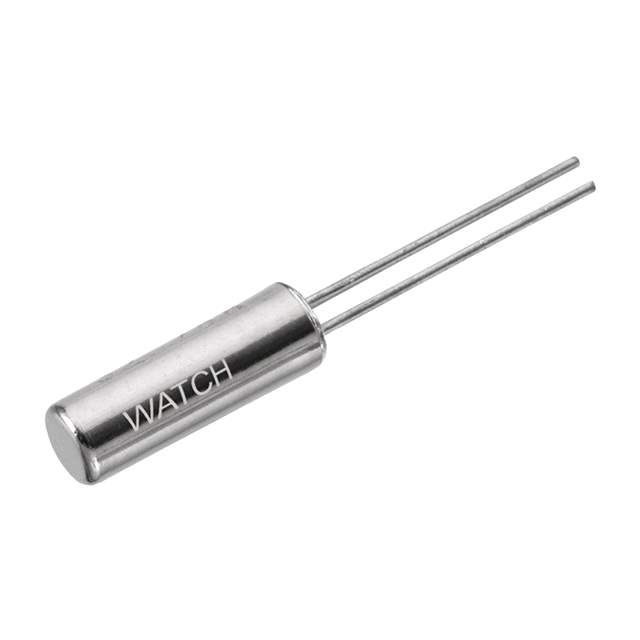

830002996B Real Image
Same model may have multiple batches, images only for reference.

830002996B

Part No 830002996B
Manufacturer Wurth Electronics Inc
Catalog Crystals
Description WE-XTAL QUARTZ CRYSTAL 32.7680 K / 32.768 kHz ±15ppm Crystal 12.5pF 50 kOhms Cylindrical Can, Radial
Datasheet
830002996B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Würth Elektronik
Series WATCH-3X8
Package Bulk
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±15ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 50 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Cylindrical Can, Radial
Size / Dimension 0.118" Dia (3.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1351506-830002996B
Ultra Librarian 3D Model Ultra Librarian 830002996B CAD Model

Description

The Würth Elektronik WATCH-3X8 series crystal is a reliable and cost-effective solution for kHz tuning fork applications.

  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±15ppm
  • Load Capacitance: 12.5pF
  • ESR (Equivalent Series Resistance): 50 kOhms
  • Frequency Stability: Not Specified
  • Mounting Type: Through Hole
  • Package / Case: Cylindrical Can, Radial
  • Diameter: 0.118" (3.00mm)
  • Height: 0.315" (8.00mm)
  • Packaging: Bulk
  • Standard Package: 1,000
