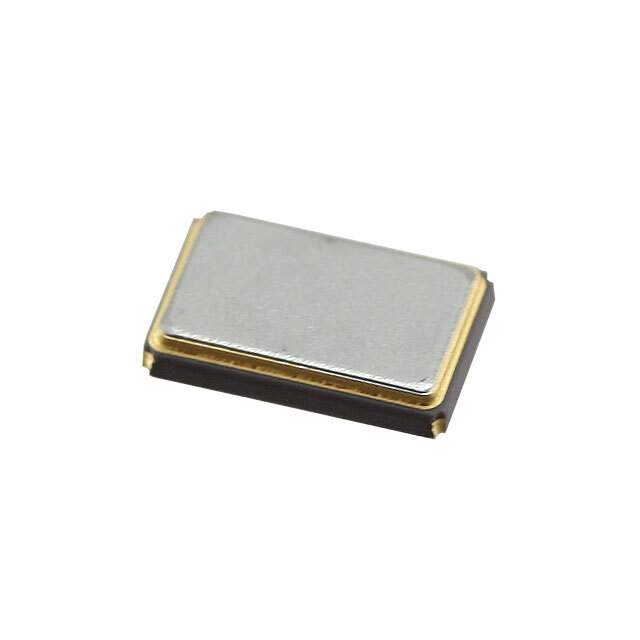

7B14300110 Real Image1 7B14300110 Real Image2
Same model may have multiple batches, images only for reference.
7B14300110 Real Image1 7B14300110 Real Image2
7B14300110 Real Image1 7B14300110 Real Image2
Same model may have multiple batches, images only for reference.

7B14300110

Part No 7B14300110
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 14.31818MHZ 20PF SMD / 14.31818 MHz ±20ppm Crystal 20pF 40 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 7B
Package Tape & Reel (TR)
Product Status Obsolete
Type MHz Crystal
Frequency 14.31818 MHz
Frequency Stability ±25ppm
Frequency Tolerance ±20ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.041" (1.05mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Standard Package 1,000
Win Source Part Number 997903-7B14300110
Ultra Librarian 3D Model Ultra Librarian 7B14300110 CAD Model

Description

The 997903-7B14300110 is a MHz crystal component with a frequency of 14.31818 MHz.

  • ESR (Equivalent Series Resistance): 40 Ohms
  • Frequency Stability: ±25ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Package/Case: 4-SMD, no lead
  • Height Seated (Max): 0.041" (1.05mm)
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.60.0050
  • Manufacturer: TXC CORPORATION
  • Status: Obsolete
