Same model may have multiple batches, images only for reference.

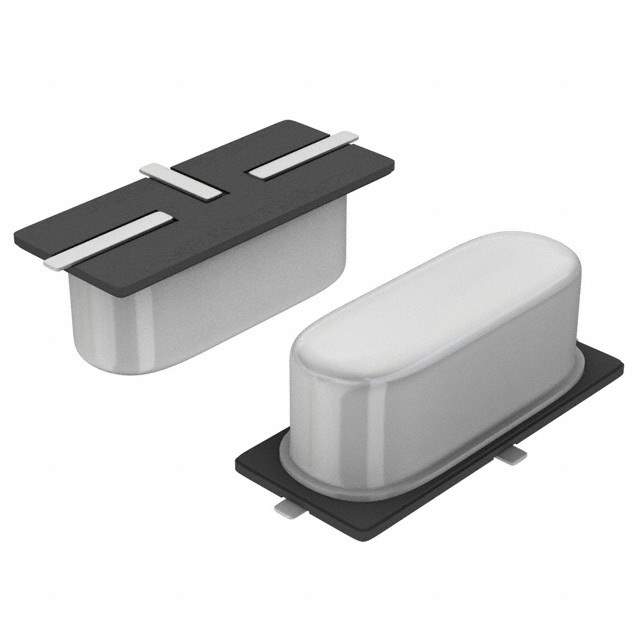

ABLSG-12.000MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLSG-12.000MHZ-D2Y-T

Part No ABLSG-12.000MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF SMD / 12 MHz ±20ppm Crystal 18pF 50 Ohms HC-49/US - 3 Lead
Datasheet
ABLSG-12.000MHZ-D2Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLSG
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US - 3 Lead
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.165" (4.20mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names ABLSG12000MHZD2YT,ABLSG-12.000MHZ-D-2-Y-T,535-10609-6,535-10609-1,535-10609-2
Standard Package 1,000
Win Source Part Number 997890-ABLSG-12.000MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABLSG-12.000MHZ-D2Y-T CAD Model

Description

The 997890-ABLSG-12.000MHZ-D2Y-T is a crystal oscillator that is ideal for use in various applications.

  • Series: ABLSG series
  • Frequency: 12 MHz
  • Load Capacitance: 18 pF
  • Equivalent Series Resistance: 50 ohms
  • Frequency Stability: ±30 ppm
  • Frequency Tolerance: ±20 ppm
  • Operating Mode: fundamental
  • Package Size: HC-49/US - 3 Lead
  • Temperature Range: -40°C to 85°C
  • Applications: various electronic devices
