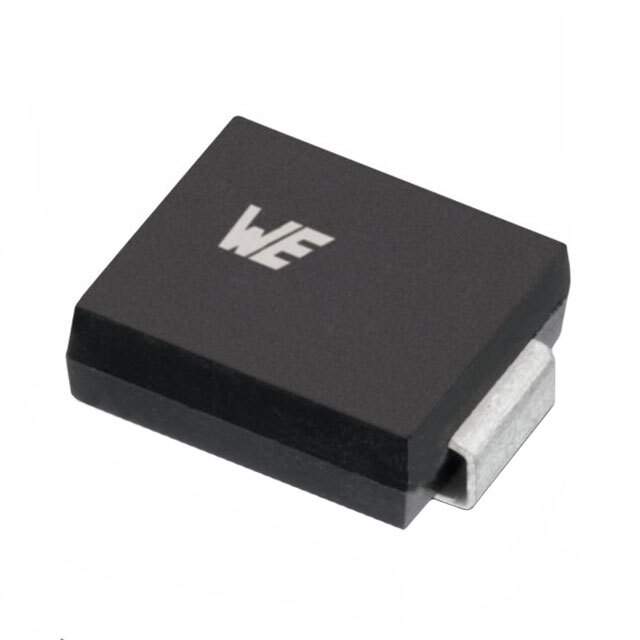

824500101 Real Image
Same model may have multiple batches, images only for reference.

824500101

Part No 824500101
Manufacturer Wurth Electronics Inc
Catalog TVS - Diodes
Description TVS DIODE 10VWM 17VC DO214AC
Datasheet
824500101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 33 Weeks
Features 17V Clamp 23.5A Ipp Tvs Diode Surface Mount DO-214AC
Manufacturer Wurth Electronics Inc
Series WE-TVSP
Package Reel - TR
Operating Temperature Range -65°C ~ 150°C (TJ)
Mounting Surface Mount
Package DO-214AC, SMA
Case / Package DO-214AC
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 732-9982-6, 732-9982-2, 732-9982-1
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 845487-824500101
Ultra Librarian 3D Model Ultra Librarian 824500101 CAD Model

Description

The 845487-824500101 is a TVS diode manufactured by Wurth Electronics Inc.

  • V Clamp: 17V
  • Ipp: 23.5A
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AC, SMA
  • Popularity: Medium
  • Series: WE-TVSP
  • Manufacturer: Wurth Electronics Inc.
