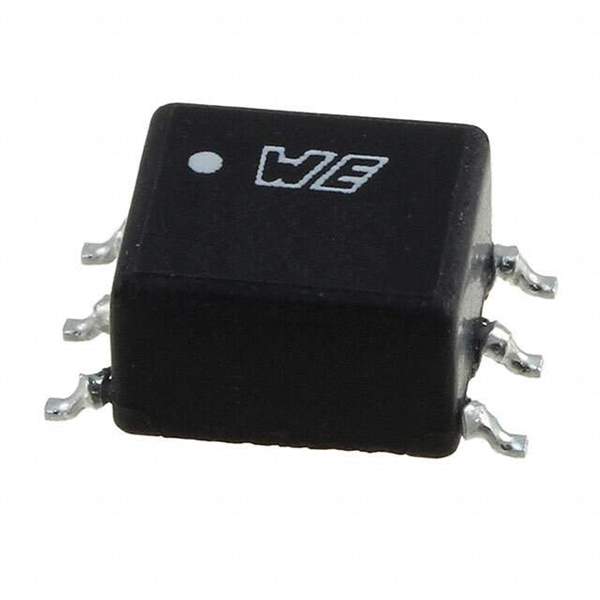

760390015 Real Image
Same model may have multiple batches, images only for reference.

760390015

Part No 760390015
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMER | TRANSFORMER 475UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Wurth Electronics Midcom
Packaging Reel
Type For DC/DC Converters
Applications Forward, Push-Pull Converters
Intended Chipset SN6501
Chipset Manufacturer Texas Instruments
Voltage - Isolation 3125Vrms
Inductance at Frequency 475μH at 10kHz
Frequency 10kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Maximum) 0.170" (4.32mm)
Footprint 0.265" L x 0.395" W (6.73mm x 10.05mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133644-760390015
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 760390015 CAD Model

Description

The 1133644-760390015 is an electronic component manufactured by Wurth Electronics Midcom.

  • Supply and Demand Status: Limited
  • Win Source Part Number: 584350
  • Packaging: Reel
  • Intended for: DC/DC converters
  • Mounting Style: SMD
  • Applications: Forward and push-pull converters
  • Frequency: 10kHz
  • Voltage Isolation: 3125Vrms
  • Intended Chipset: SN6501
  • Chipset Manufacturer: Texas Instruments
  • Footprint: 0.265" L x 0.395" W (6.73mm x 10.05mm)
  • Seated Height: 0.170" (4.32mm)
  • Inductance @ Frequency: 475μH @ 10kHz
  • Voltage Auxiliary: -
