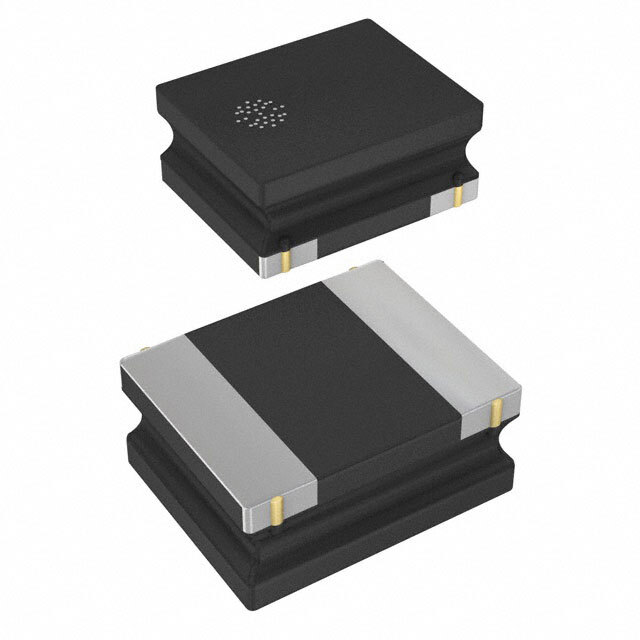

VGT22EPC-200S6A12

Part No VGT22EPC-200S6A12
Manufacturer TDK Corporation
Catalog Switching Converter, SMPS Transformers
Description XFMR FLYBACK AC/DC CONV 2.5UH SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type For AC/DC Converters
Applications Flyback Converters
Voltage - Isolation 2600Vrms
Inductance @ Frequency 2.5µH @ 100kHz
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 1.299" L x 0.976" W (33.00mm x 24.80mm)
Height - Seated (Max) 0.539" (13.70mm)
Footprint 1.299" L x 1.055" W (33.00mm x 26.80mm)
Style Wirewound
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1509670-VGT22EPC-200S6A12
Ultra Librarian 3D Model Ultra Librarian VGT22EPC-200S6A12 CAD Model
