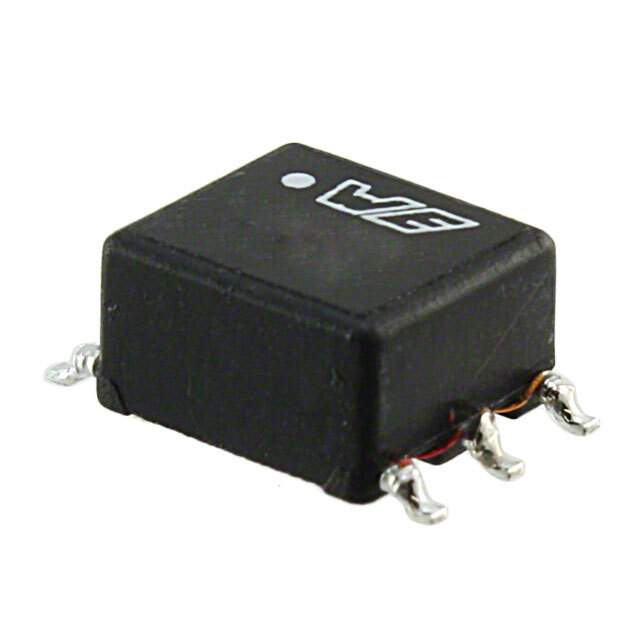

760390013 Real Image
Same model may have multiple batches, images only for reference.

760390013

Part No 760390013
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMER 475UH SMD / Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 3125Vrms Isolation 10kHz Surface Mount
Datasheet
760390013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Switching Converter, SMPS Transformers
Mfr Wurth Electronics Inc
Series WE-PP, MID-PPTI
Package Tape & Reel
Product Status Active
Type For DC/DC Converters
Applications Forward, Push-Pull Converters
Intended Chipset SN6501
Chipset Manufacturer Texas Instruments
Voltage - Isolation 3125Vrms
Inductance @ Frequency 475µH @ 10kHz
Frequency 10kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max) 0.170" (4.32mm)
Footprint 0.265" L x 0.395" W (6.73mm x 10.05mm)
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 846580-760390013
Ultra Librarian 3D Model Ultra Librarian 760390013 CAD Model

Description

The WE-PP and MID-PPTI series are switching converter transformers designed for DC/DC converters.

  • Packaging: Tape & Reel
  • Size: 0.265" L x 0.281" W (6.73mm x 7.14mm)
  • Applications: Forward and Push-Pull Converter
  • Inductance: 475µH @ 10kHz
  • Isolation Voltage: 3125Vrms
  • Operating Temperature: -40°C to 125°C
  • Chipset: SN6501 (Texas Instruments)
  • Manufacturer: Wurth Electronics Inc
