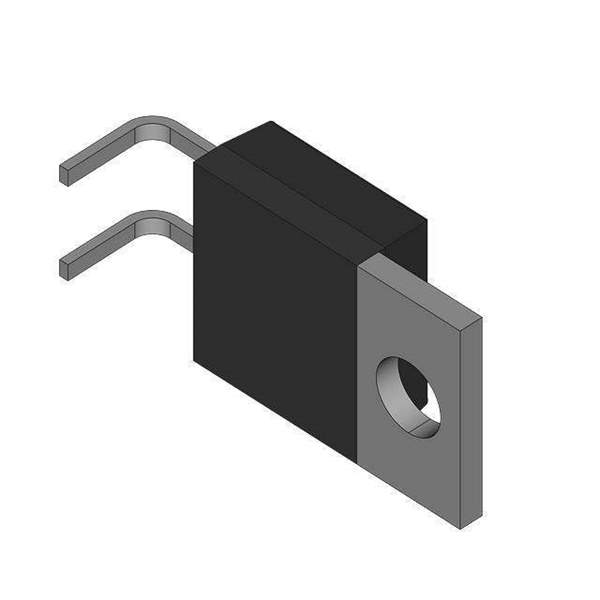

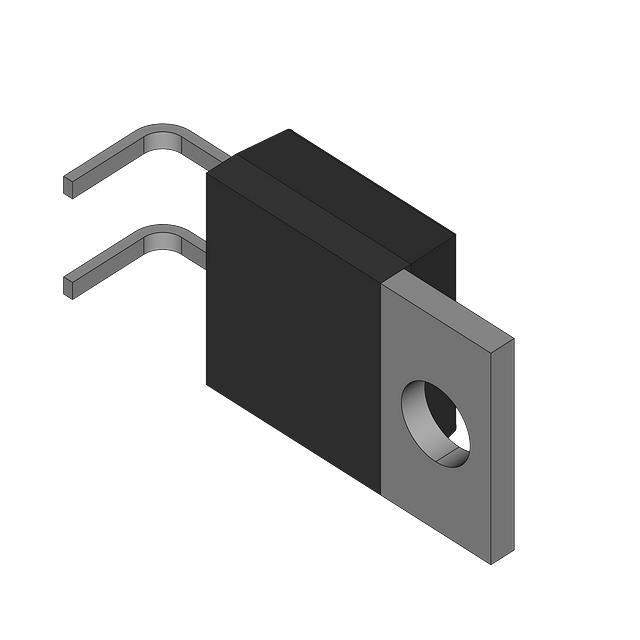

MBR2515LG - ON Semiconductor's Robust Rectifier Solution

The MBR2515LG is a high-performance Schottky barrier rectifier designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This rectifier is engineered to meet the stringent requirements of electronic systems, offering a combination of low forward voltage drop and high current capability. The MBR2515LG is a prime choice for power supply designers and engineers looking to enhance efficiency and reliability in their applications.

Key Features:

• High Surge Capacity: The device boasts a surge overload rating, providing robust performance in applications subject to surge and peak loads.
• Low Power Loss: With its Schottky barrier design, the MBR2515LG ensures low forward voltage drop, resulting in reduced power loss and improved efficiency.
• High Current Capability: This rectifier can handle a high forward current, making it suitable for high-current applications.
• Guard Ring Protection: ON Semiconductor has incorporated a guard ring for enhanced ruggedness and long-term reliability.
• Reverse Voltage: It is rated for a maximum reverse voltage of 15V, ensuring protection against voltage spikes and transients.
• Package: The MBR2515LG comes in a robust package that is designed to optimize thermal performance and durability.

Applications:

The versatility of the MBR2515LG allows it to be used across various applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters
• Automotive applications

Technical Specifications:

Parameter Value Package Type TO-220 Average Rectified Current (Io) 25 A Peak Repetitive Reverse Voltage (Vrrm) 15 V Forward Voltage Drop (Vf) 0.86 V @ 15 A Operating Temperature Range -65°C to 175°C

In conclusion, the MBR2515LG from ON Semiconductor is a top-tier solution for engineers looking for a Schottky barrier rectifier that combines efficiency, high current handling, and thermal performance. Its rugged design ensures that it can withstand challenging environments and deliver consistent, reliable performance over its lifespan.
