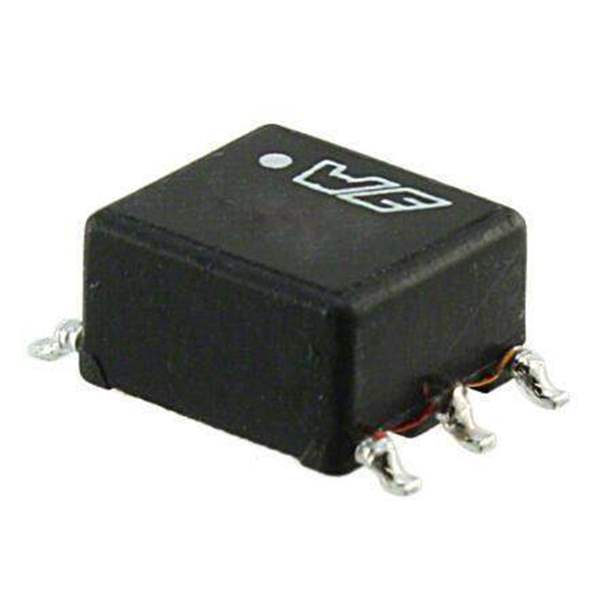

760390011 Würth Elektronik
Same model may have multiple batches, images only for reference.

760390011

Part No 760390011
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description XFMR FWD P-P DC/DC CONV 1MH SMD
Datasheet
760390011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Transformers Switching Converter, SMPS Transformers
Product Status Active
Type For DC/DC Converters
Applications Forward, Push-Pull Converters
Intended Chipset SN6501
Chipset Manufacturer Texas Instruments
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.265" L x 0.281" W (6.73mm x 7.14mm)
Win Source Part Number WS1210781-760390011
Ultra Librarian 3D Model Ultra Librarian 760390011 CAD Model

Description

Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 10kHz Surface Mount
