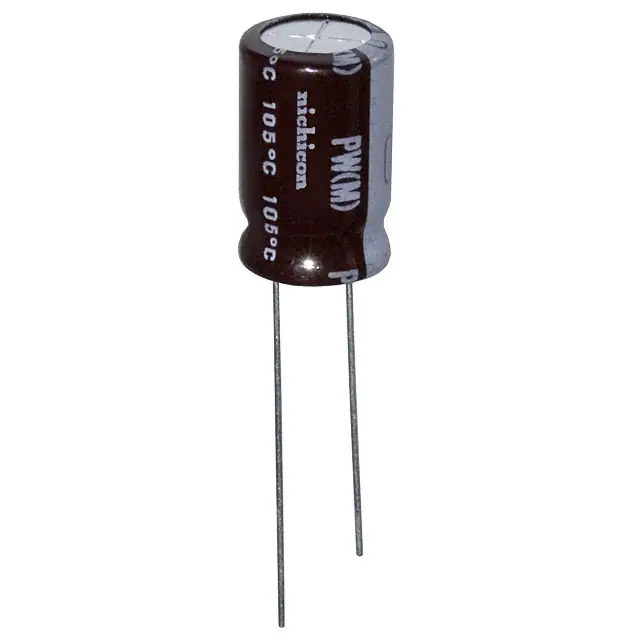

UPW2G2R2MPD Nichicon
Same model may have multiple batches, images only for reference.

UPW2G2R2MPD

Part No UPW2G2R2MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2.2UF 20% 400V RADIAL / 2.2 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UPW2G2R2MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Last Time Buy
Capacitance 2.2 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 27 mA @ 120 Hz
Ripple Current @ High Frequency 43.2 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358181-UPW2G2R2MPD
Ultra Librarian 3D Model Ultra Librarian UPW2G2R2MPD CAD Model

Description

The 1358181-UPW2G2R2MPD is an aluminum electrolytic capacitor from Nichicon's UPW series.

  • Capacitance: 2.2 μF
  • Tolerance: ±20%
  • Voltage - Rated: 400 V
  • Applications: General Purpose
  • Ripple Current @ Low Frequency: 27 mA @ 120 Hz
  • Ripple Current @ High Frequency: 43.2 mA @ 10 kHz
  • Size / Dimension: 0.394" Dia
  • Height - Seated (Max): 0.630"
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Series: UPW
  • Product Status: Last Time Buy
  • RoHS Status: RoHS Compliant
  • REACH Status: Unaffected
  • ESR (Equivalent Series Resistance): Not Specified
  • Lead Spacing: 0.197" (5.00mm)
  • Mounting Type: Through Hole
  • Polarization: Polarized
