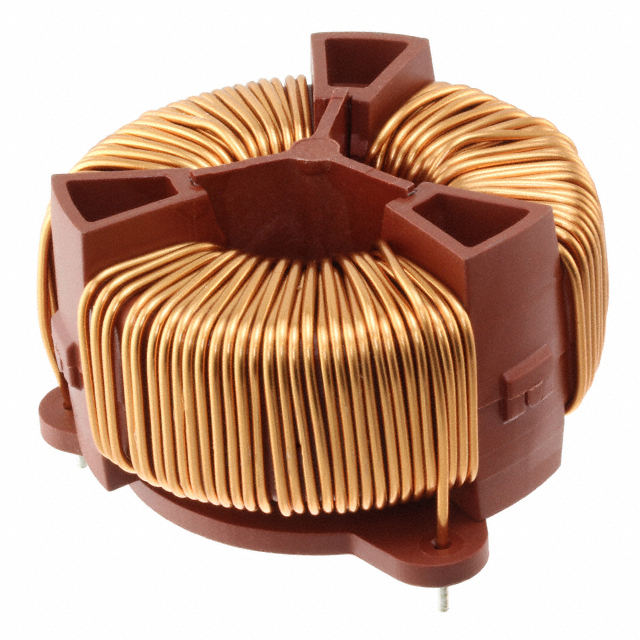

744839003460 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

744839003460

Part No 744839003460
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description 3 mH @ 10 kHz 3 Line Common Mode Choke Through Hole 46A DCR 1.6mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Series WE-TPBHV
Packaging Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 3 mH @ 10 kHz
Current Rating (Max) 46A
DC Resistance (DCR) (Max) 1.6mOhm
Voltage Rating - AC 760V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 2.756" Dia (70.00mm)
Height (Max) 1.535" (39.00mm)
Package / Case Horizontal, 6 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1481571-744839003460
Ultra Librarian 3D Model Ultra Librarian 744839003460 CAD Model
