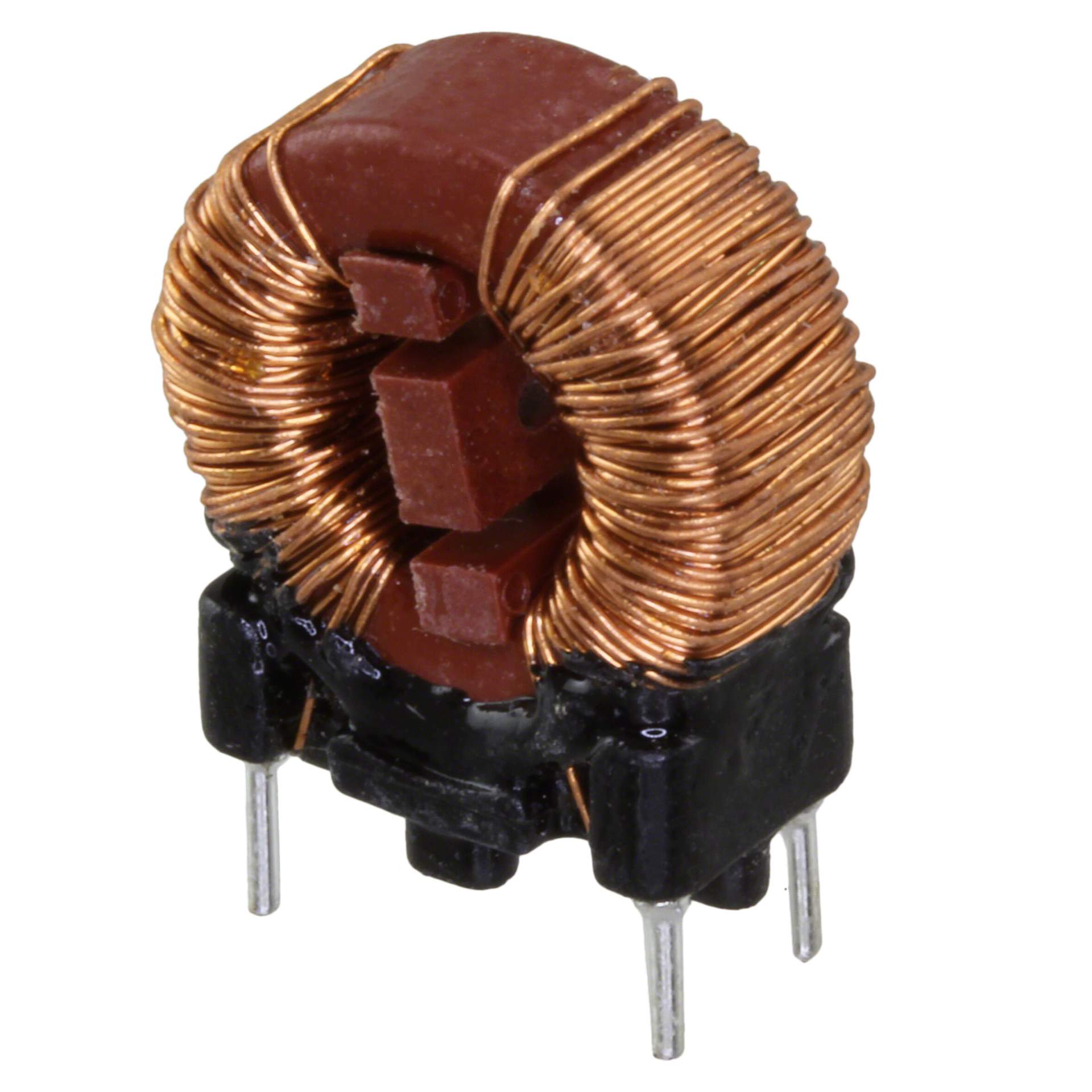

Part No 744821120
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 20MH 500MA 2LN TH / 20 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1Ohm
Datasheet
744821120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Würth Elektronik
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20 mH @ 10 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Through Hole
Size / Dimension 0.591" L x 0.295" W (15.00mm x 7.50mm)
Height (Max) 0.689" (17.50mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-1438
Standard Package 300
Win Source Part Number 1327582-744821120
Ultra Librarian 3D Model Ultra Librarian 744821120 CAD Model

Description

The Würth Elektronik common mode choke is a power line filter with a 20 mH inductance @ 10 kHz and a maximum current rating of 500mA.

  • Voltage Rating: 250V AC
  • Mounting Technology: Through-Hole
  • Package: Vertical, 4 PC pin case
  • Size: 0.591" L x 0.295" W (15.00mm x 7.50mm)
  • Operating Temperature: -40°C to 125°C
  • DC Resistance (DCR): 1Ohm
  • Compliance: REACH unaffected and ROHS3 compliant
