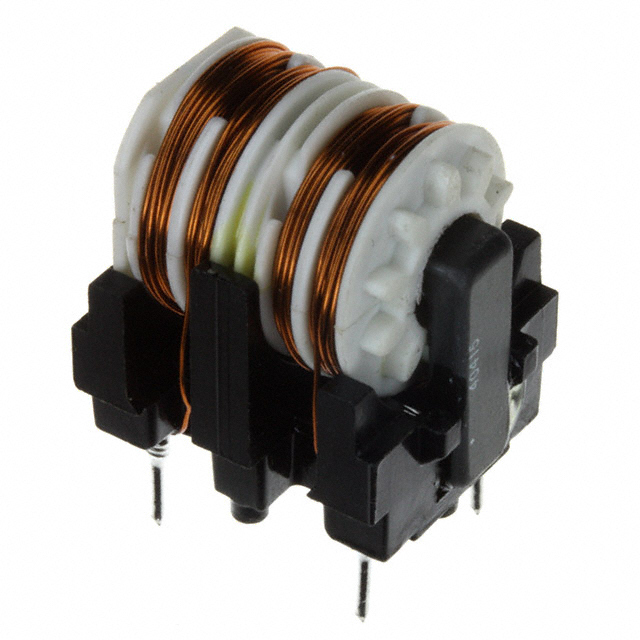

Same model may have multiple batches, images only for reference.
7448061309 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7448061309

Part No 7448061309
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 9MH 13A 2LN TH
Datasheet
7448061309 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9 mH @ 10 kHz
Current Rating (Max) 13A
DC Resistance (DCR) (Max) 15mOhm
Voltage Rating - AC 300V
Temperature Range - Operating -55° C ~ 125°C
Features Nanocrystalline Core
Mounting Type Through Hole
Size / Dimension 1.772" L x 1.063" W (45.00mm x 27.00mm)
Height (Max) 1.811" (46.00mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1507183-7448061309
Ultra Librarian 3D Model Ultra Librarian 7448061309 CAD Model
