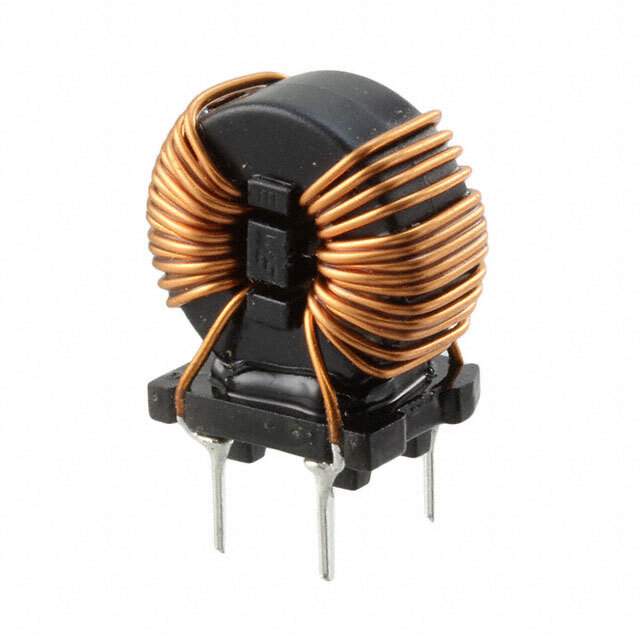

7448030509 Real Image
Same model may have multiple batches, images only for reference.

7448030509

Part No 7448030509
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 9MH 5A 2LN TH
Datasheet
7448030509 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CMBNC
Package Bulk
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 28mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.866" L x 0.531" W (22.00mm x 13.50mm)
Height (Max) 0.984" (25.00mm)
Package / Case Vertical, 4 PC Pin
Standard Package 90 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857615-7448030509
Ultra Librarian 3D Model Ultra Librarian 7448030509 CAD Model

Description

The WE-CMBNC series common mode choke is a power line filter designed to suppress electromagnetic interference.

  • Size: 0.866" L x 0.531" W (22.00mm x 13.50mm)
  • Height: 0.984" (25.00mm)
  • Type: Through-hole choke
  • Voltage Rating: 250V AC
  • Current Rating: 5A
  • Inductance: 9mH @ 10 kHz
  • DC Resistance (DCR): 28mOhm max
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Package: 90 pcs
