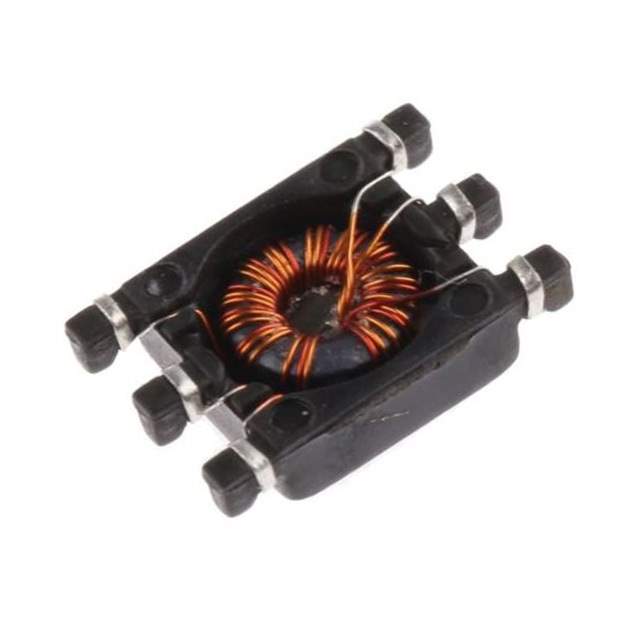

744253200 Real Image
Same model may have multiple batches, images only for reference.

744253200

Part No 744253200
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 20UH 500MA 3LN SMD / 20 μH @ 100 kHz 3 Line Common Mode Choke Surface Mount 500mA DCR
Datasheet
744253200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL3
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 3
Inductance @ Frequency 20 µH @ 100 kHz
Current Rating (Max) 500mA
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.098" (2.50mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857312-744253200
Ultra Librarian 3D Model Ultra Librarian 744253200 CAD Model

Description

The WE-SL3 series from Wurth Electronics Inc is a signal line common mode choke filter.

  • Voltage Rating: 80V DC
  • Current Rating: 500mA
  • Height: 0.098" (2.50mm)
  • Lines: Three
  • Inductance: 20 µH @ 100 kHz
  • Mounting: Surface mountable
  • Temperature Range: -40°C to 125°C
