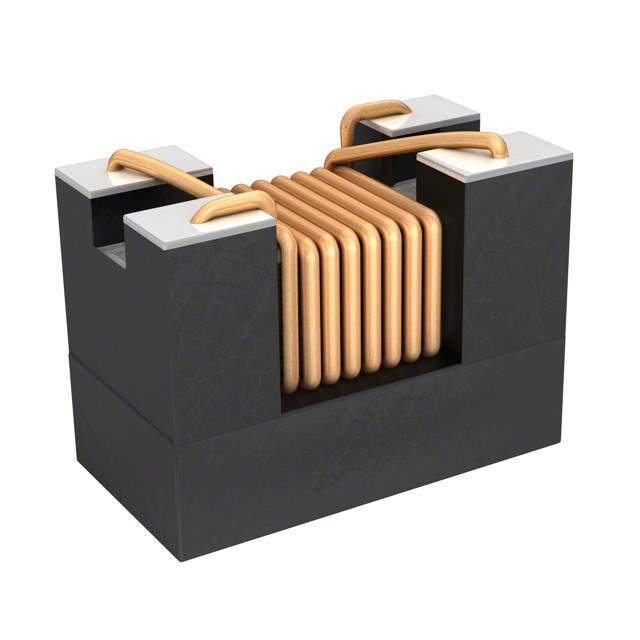

744235220 Real Image
Same model may have multiple batches, images only for reference.

744235220

Part No 744235220
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 22UH 250MA 2LN 8KOHM SMD / 22 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 8 kOhms @ 100 MHz 250mA DCR 2.65Ohm
Datasheet
744235220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CNSW
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 8 kOhms @ 100 MHz
Inductance @ Frequency 22 µH @ 100 kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 2.65Ohm
Voltage Rating - DC 60V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.118" (3.00mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857306-744235220
Ultra Librarian 3D Model Ultra Librarian 744235220 CAD Model

Description

The WE-CNSW is a common mode choke from Wurth Electronics Inc.

  • Mounting: Surface mount
  • Voltage Rating: 60V DC
  • Current Rating: 250mA
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height: 0.118" (3.00mm)
  • Package: Horizontal, 4 PC pad
  • Impedance: 8 kOhms @ 100 MHz
  • Inductance: 22 µH @ 100 kHz
  • DC Resistance (DCR): 2.65 Ohm
  • Operating Temperature: -40°C to 125°C
  • AEC-Q200 Rated: Yes
