Same model may have multiple batches, images only for reference.

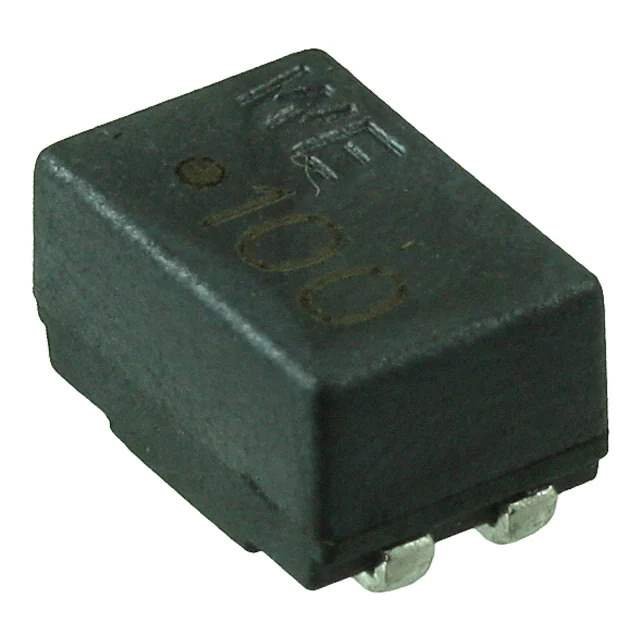

744224 Real Image
Same model may have multiple batches, images only for reference.

744224

Part No 744224
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 250UH 1.2A 2LN 1.8K OHM SMD
Datasheet
744224 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 1.8 kOhms @ 8 MHz
Inductance @ Frequency 250 µH @ 100 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 130mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.205" (5.20mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547224-744224
Ultra Librarian 3D Model Ultra Librarian 744224 CAD Model

Description

The WE-SL2 series is a range of common mode chokes designed for power and signal line filtering applications. With a compact size of 0.362" L x 0.236" W (9.20mm x 6.00mm), these chokes provide an impedance of 1.8 kOhms @ 8 MHz and an inductance of 250 µH @ 100 kHz.

  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Impedance: 1.8 kOhms @ 8 MHz
  • Inductance: 250 µH @ 100 kHz
  • Voltage Rating: 80V DC
  • Current Rating: 1.2A
  • Mounting Type: Surface Mount
  • Height: 0.205" (5.20mm)
  • DC Resistance (DCR): 130mOhm max
  • Operating Temperature Range: -40°C to 125°C
  • Packaging: Tape & Reel
  • Standard Package: 1,000 pcs
  • Manufacturer: Wurth Electronics Inc
