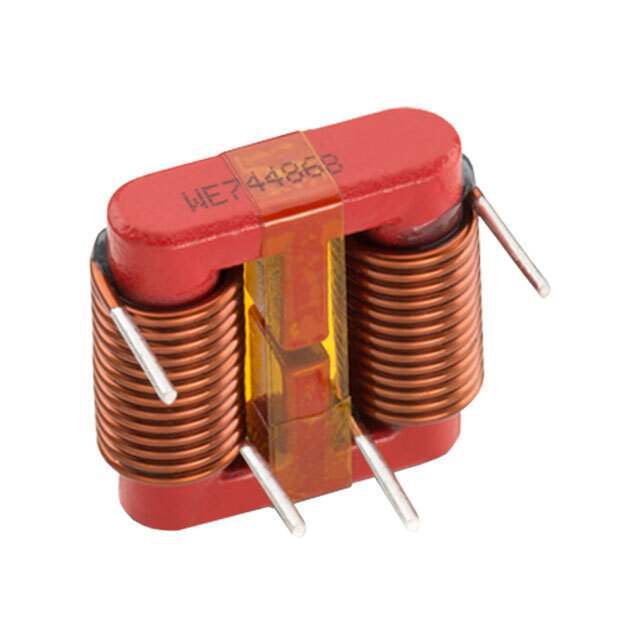

7448680200 Würth Elektronik
Same model may have multiple batches, images only for reference.

7448680200

Part No 7448680200
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 120UH 23.5A 2LN TH
Datasheet
7448680200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206876-7448680200
Manufacturer Würth Elektronik
Category Filters-Common Mode Chokes
Series WE-LPCC
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 120 µH @ 10 kHz
Current Rating (Max) 23.5A
DC Resistance (DCR) (Max) 1.4mOhm
Ultra Librarian 3D Model Ultra Librarian 7448680200 CAD Model

Description

120 µH @ 10 kHz 2 Line Common Mode Choke Through Hole 23.5A DCR 1.4mOhm
