7427727

Part No 7427727
Manufacturer Wurth Electronics Inc
Catalog Cable Ferrites
Description FERRITE CORE 100 OHM SOLID
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206315-7427727
Manufacturer Würth Elektronik
Category Filters-Cable Ferrites
Series WE-AFB LFS
Package Tray
Product Status Active
Type Round
Design Solid
Impedance @ Frequency 100Ohm @ 10MHz
Material 8W5000
Inner Dimension 0.250" Dia (6.35mm)
Outer Dimension 0.559" Dia (14.20mm)
Ultra Librarian 3D Model Ultra Librarian 7427727 CAD Model

Description

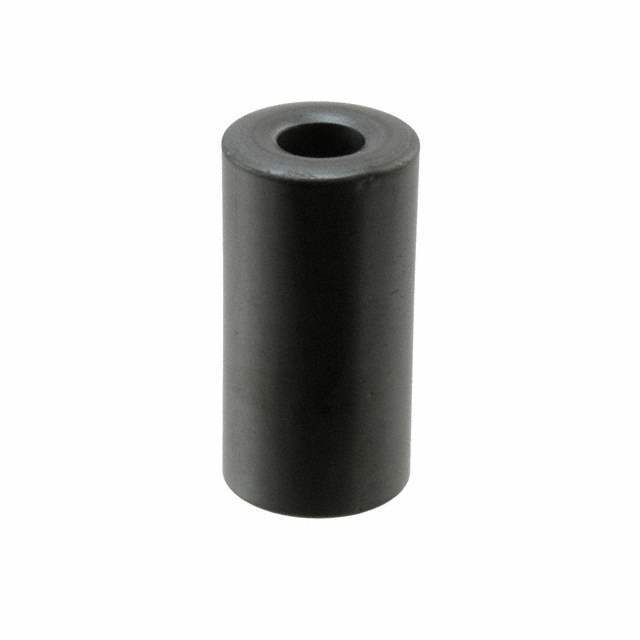

Solid Free Hanging Ferrite Core 100Ohm @ 10MHz ID 0.250" Dia (6.35mm) OD 0.559" Dia (14.20mm) Length 1.122" (28.50mm)
