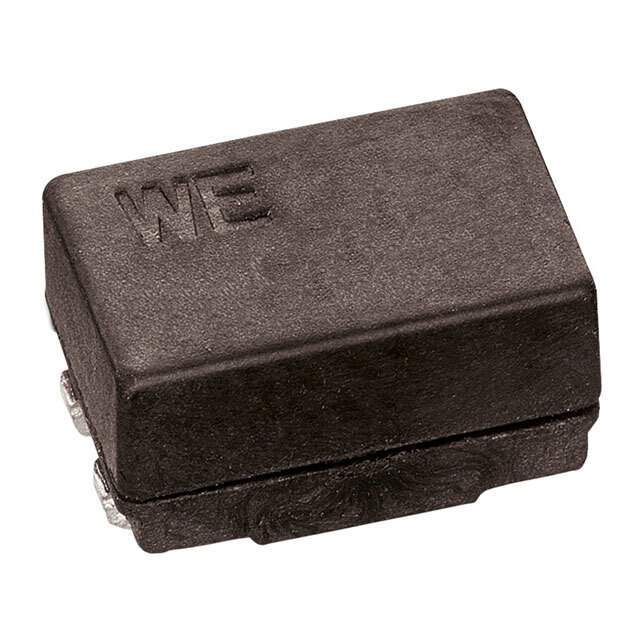

744220203 Real Image
Same model may have multiple batches, images only for reference.

744220203

Part No 744220203
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 20MH 200MA 2LN SMD
Datasheet
744220203 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 20 mH @ 10 kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 2.6Ohm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857294-744220203
Ultra Librarian 3D Model Ultra Librarian 744220203 CAD Model

Description

The WE-SL2 series is a common mode choke designed specifically for signal line filtering applications.

  • Current Rating: 200mA
  • Voltage Rating: 80V DC
  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Height: 0.209" (5.30mm)
  • Inductance: 20 mH @ 10 kHz
  • DC Resistance: 2.6Ohm
  • Mounting Type: Surface Mount
  • Package: Horizontal, 4 PC pad
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Standard Package: 1,000 pcs
