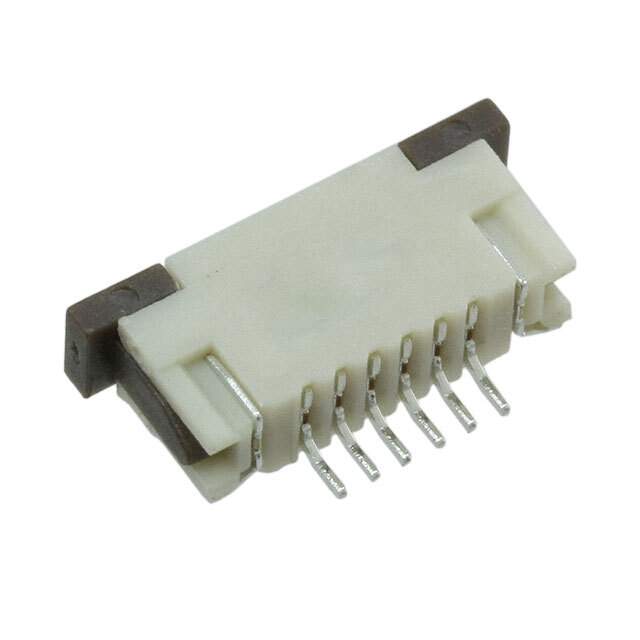

Same model may have multiple batches, images only for reference.

68611814122

Name: 68611814122
Brand: Wurth Electronics Inc
SKU: 856968
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	68611814122
Manufacturer	Wurth Electronics Inc
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC TOP 18POS 1MM R/A
Datasheet	68611814122 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Wurth Electronics Inc
Series	WR-FPC
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	18
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.29mm ~ 0.34mm
Height Above Board	0.116" (2.95mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Polyphenylene Sulfide (PPS)
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	125V
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Contact Finish Thickness	100.0µin (2.54µm)
Housing Color	Beige
Actuator Color	Brown
Mating Cycles	25
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	856968-68611814122
Ultra Librarian 3D Model	Ultra Librarian 68611814122 CAD Model

Description

The WR-FPC series is a flat flexible connector assembly designed for connecting FFC (Flat Flexible Cable) in electronic circuits.

Number of Positions: 18
Pitch: 0.039" (1.00mm)
Features: Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating: 125V
Current Rating: 1A
Contact Material: Phosphor Bronze
Contact Finish: Tin
Housing Material: Polyphenylene Sulfide (PPS)
Flammability Rating: UL94 V-0
Manufacturer: Wurth Electronics Inc
Standard Package: 1,500 pcs
