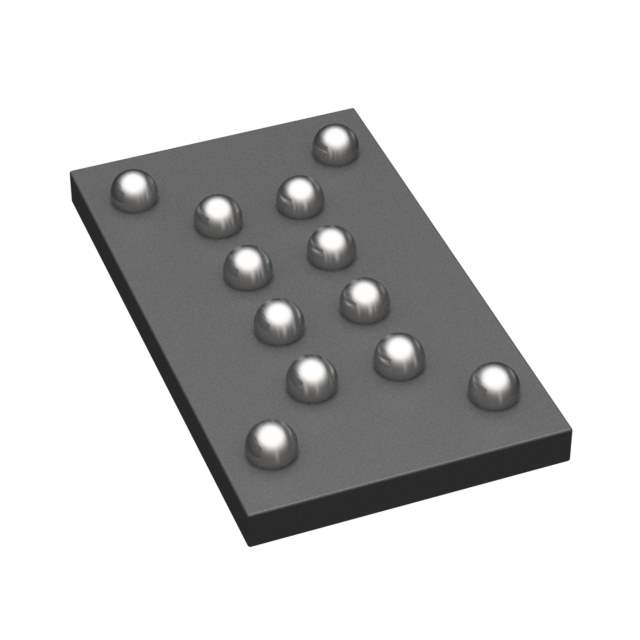

The W25Q32JWBYIQ is a 32M-bit Serial Flash memory with a Dual/Quad SPI interface, manufactured by Winbond Electronics. This device provides a storage solution for systems with limited space, pins and power.

Applications

• Mobile devices
• Wearable electronics
• Set-top boxes
• Networking equipment
• Embedded systems

Features

• 32M-bit (4M-byte) of Flash Memory
• Dual/Quad SPI Interface
• Standard, Dual or Quad SPI clocks
• Continuous Read Mode
• Supports SPI modes 0 and 3
• Single Power Supply Operation: 2.7V to 3.6V
• Program/Erase Suspend & Resume
• Software and Hardware Write-Protection
• High performance

Benefits

• High Storage Capacity: Provides ample storage for code and data in embedded systems.
• Fast Data Transfer: The Dual/Quad SPI interface enables high-speed data transfer rates.
• Low Power Consumption: Ideal for battery-powered applications.
• Flexible Interface: Supports standard, Dual, and Quad SPI modes for compatibility with various microcontrollers.
• Enhanced Security: Software and hardware write-protection features prevent accidental or malicious data corruption.

Additional Details

The W25Q32JWBYIQ features a continuous read mode, which allows for efficient data retrieval without the need for additional address cycles. The device supports SPI modes 0 and 3, providing flexibility in interfacing with different microcontrollers. It operates from a single power supply of 2.7V to 3.6V, making it suitable for low-voltage applications. The device also features program/erase suspend and resume capabilities, allowing for interruption and continuation of programming or erasing operations. The W25Q32JWBYIQ is available in a compact package, making it easy to integrate into space-constrained designs.

This serial flash memory is commonly used in applications requiring non-volatile storage, such as storing firmware, configuration data, and user data. The high-speed interface and low power consumption make it a popular choice for mobile devices, wearable electronics, and embedded systems.
