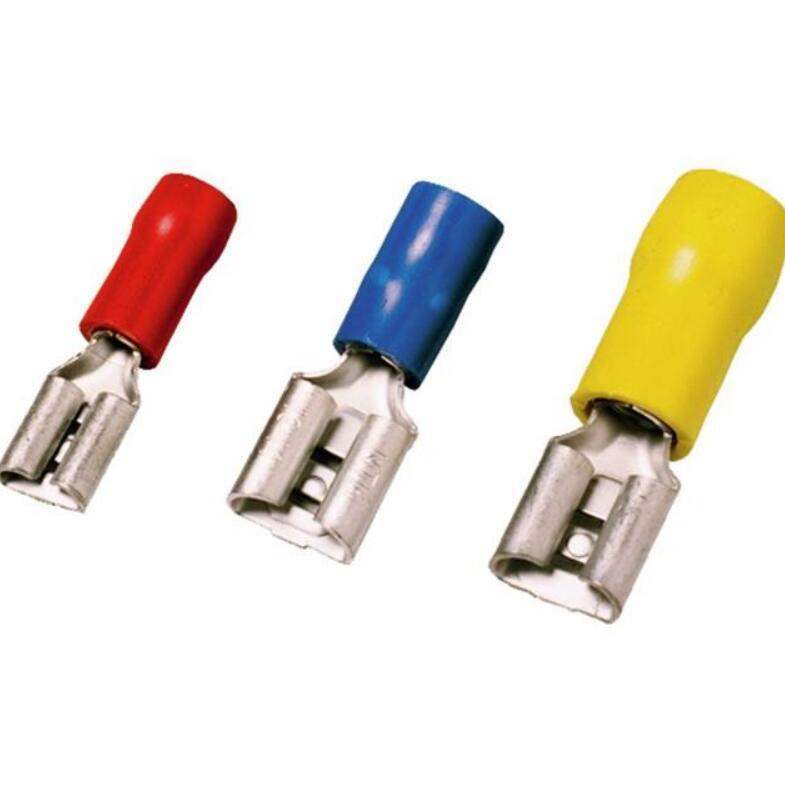

9200560000 Weidmüller
Same model may have multiple batches, images only for reference.

9200560000

Part No 9200560000
Manufacturer Weidmuller
Catalog Terminals
Description CONN QC RCPT 0.250 CRIMP
Datasheet
9200560000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminals Quick Connects, Quick Disconnect Connectors
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.819" (20.80mm)
Win Source Part Number WS1204515-9200560000
Ultra Librarian 3D Model Ultra Librarian 9200560000 CAD Model

Description

Wire end ferrules ensure the long-term quality of electrical connections. Another advantage is their usefulness during installation. The wide range of products embraces wire end ferrules with or without plastic collars and twin wire end ferrules in all the colours normally required by users.
